Hydraulic Double Way Disc Plow

1LY(SX) Series Hydraulic reversible disc plough is matched with four wheel tractor,the discs of plough are revolving to furrow the land during operation.,it can come true the plowing work in double way. Especially suitable for the operation in the land which have the weeds, stems, frictional soil , small brick .
Availability:
Quantity:
sharethis sharing button
  • 1LYSX

  • YCHS

                                      Hydraulic Double Way Disc Plow

1LY(SX) Series Hydraulic reversible disc plough is matched with four wheel tractor,the discs of plough are revolving to furrow the land during operation.,it can come true the plowing work in double way. Especially suitable for the operation in the  land which have the weeds, stems, frictional soil , small brick .

Advantages:

l   It is hydraulic double-way disk plough for 4-wheel tractor

l   Has Less  idle stroke

l   Less  working resistance when operated

l   This Double Way tractor disc plough is easy to cut off stems and roots .

l   No Winding grass ,no block and no hip building-up.

l   This mounted hydraulic disc plough has own hydraulic system to keep the working in double way.

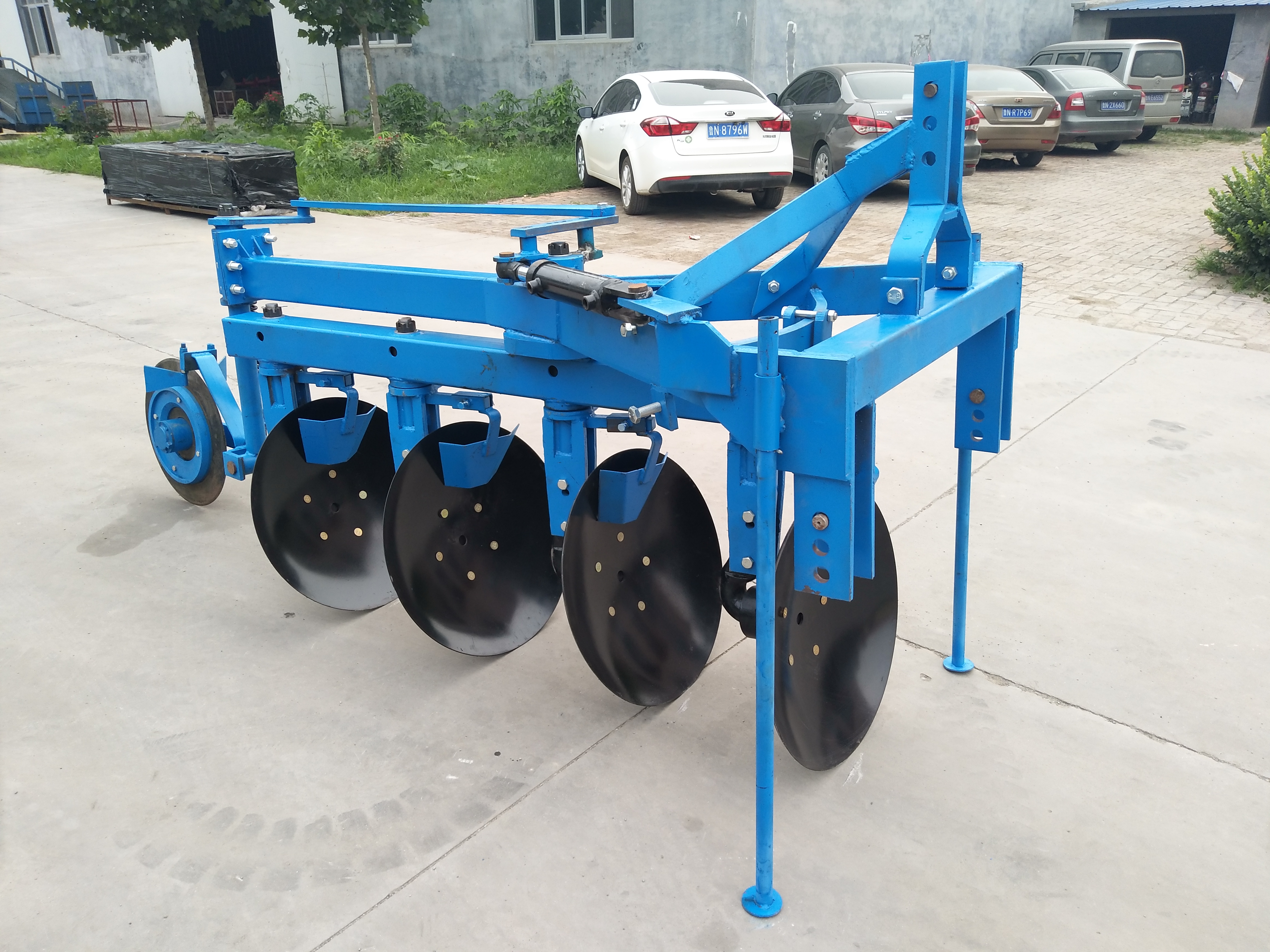

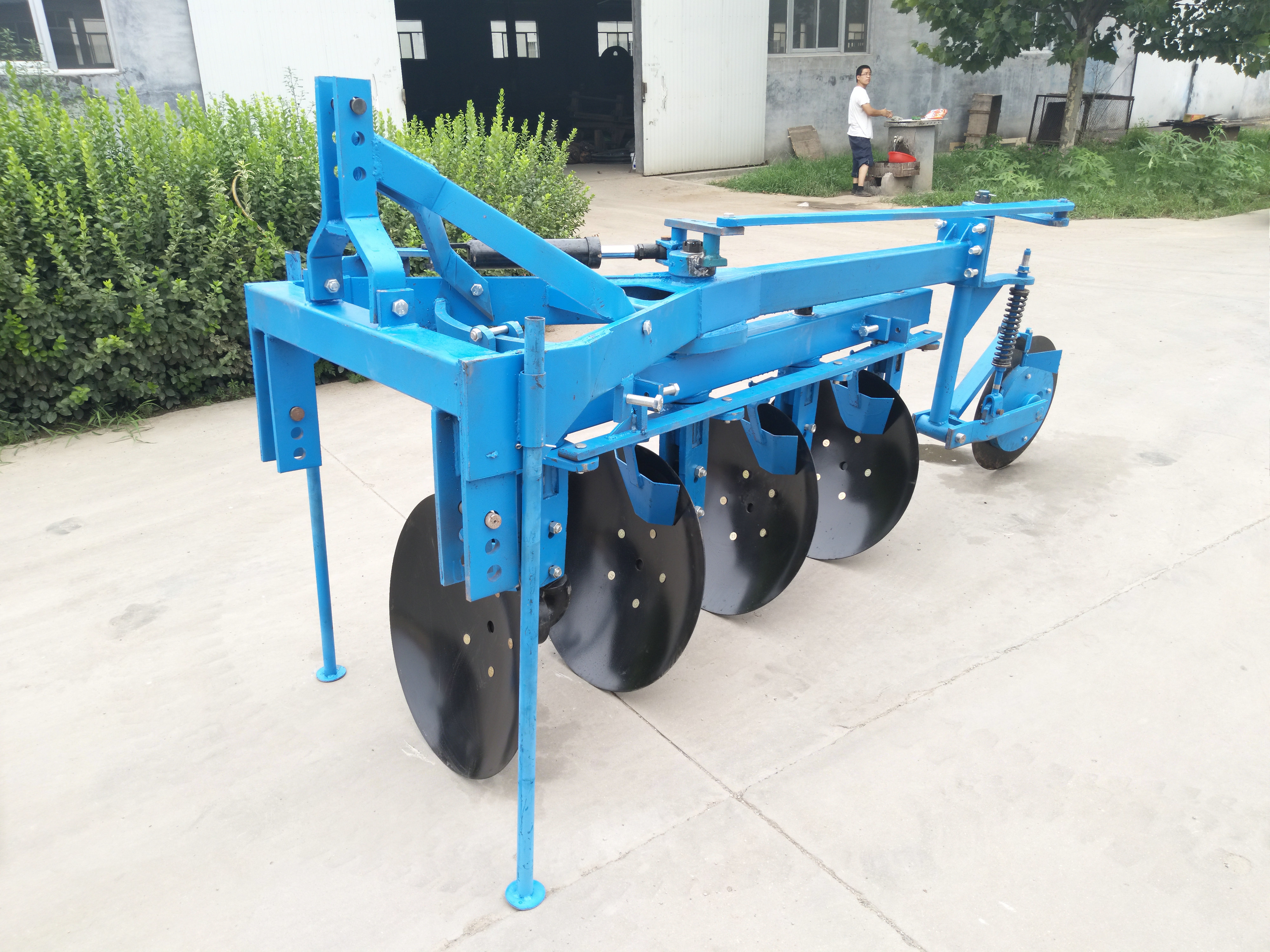

IMG_20170724_175440   IMG_20170724_173109

Advantages:

l   It is hydraulic double-way disk plough for 4-wheel tractor

l   Has Less idle stroke

l   Less  working resistance when operated

l   This Double Way tractor disc plough is easy to cut off stems and roots .

l   No Winding grass ,no block and no hip building-up.

l   This mounted hydraulic disc plough has own hydraulic system to keep the working in double way.


 Model

单位

1LY(SX)-325

1LY(SX)-425

1LY(SX)-525

 Working   width

mm

750

1000

1250

Working   depth

mm

250~300

Q’ty of disc


3

4

5

 Total   weight

kg

600

720

820

 Matched   power

hp

50

90-120

130-150

 Linkage


II类

Three-point   suspension II type;hydraulic output(difunctional oil cylinder;oil connection   in 1/2” thread

 The   items selectable


(M22*1.5/M20*1.5/M18*1.5)

Scraper or oil   connection (M22*1.5/M20*1.5/M18*1.5)

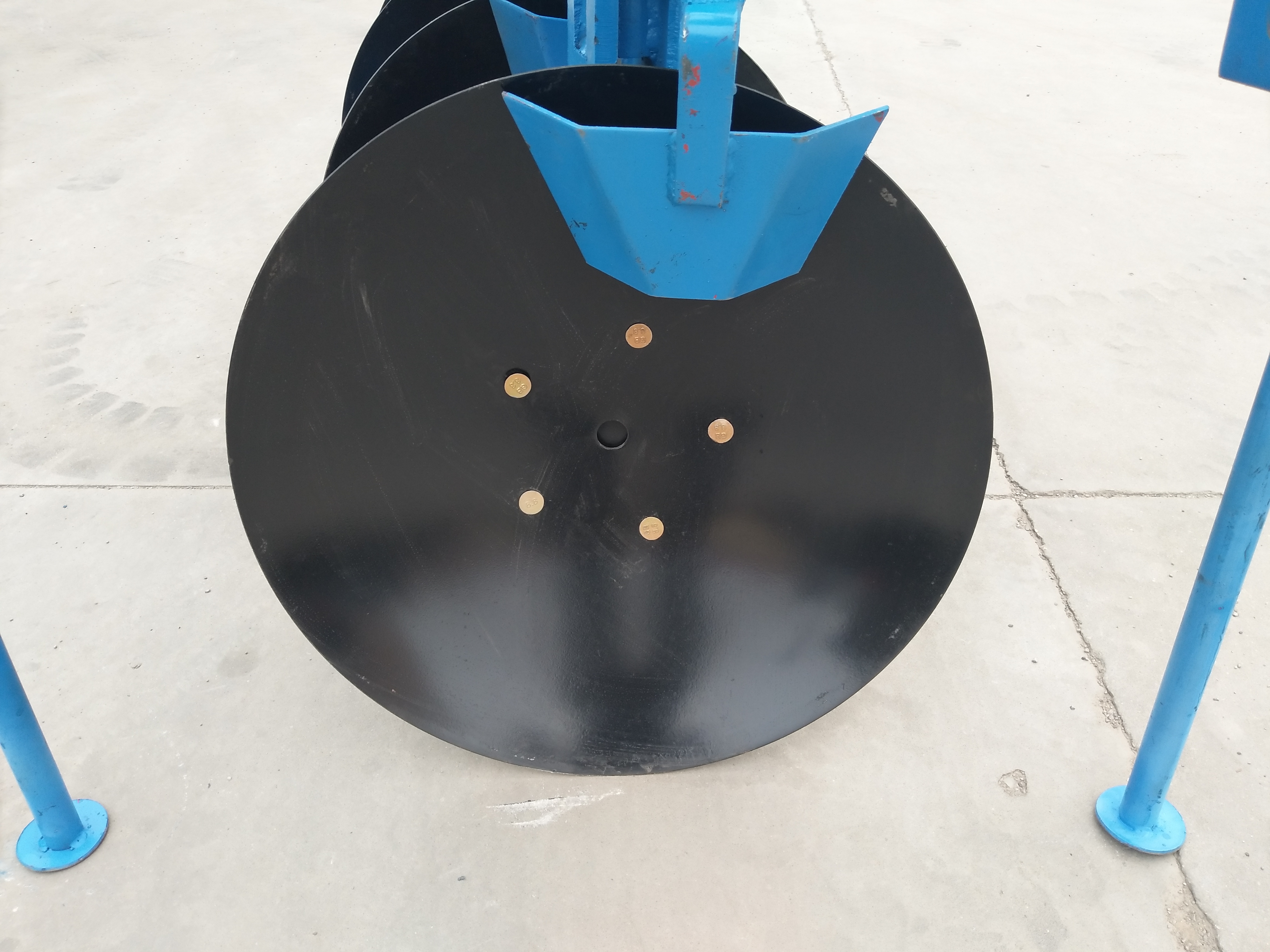

IMG_20170724_173400    IMG_20170724_175440
