China machinery driven disc plow

1LYQ Series driven disc plough is intermediate gear transmission structure, and the disc blade is rotary working with the support of input power of the tractor’s PTO, this mounted driven disk plough is especially suitable for cultivation in Paddy field.
Availability:
Quantity:
sharethis sharing button
  • 1LYQ-320

  • YCHS

                              Driven disc plough

   1LYQ Series driven disc plough is intermediate gear transmission structure, and the disc blade is rotary working with the support of input power of the tractor’s PTO, this mounted driven disk plough is especially suitable for cultivation in Paddy field.


Advantages:

l   It is a mounted driven disc plough for 4-wheels tractor through 3-point suspension system

l   This farm disc plow can be rotated actively active rotation

l   Less working resistance

l   The tractor disc plow is easy to cut stems of crops

l   Good effect of turning soil

l   This disc plough is also for dry field. It is a amphibious disc plough.

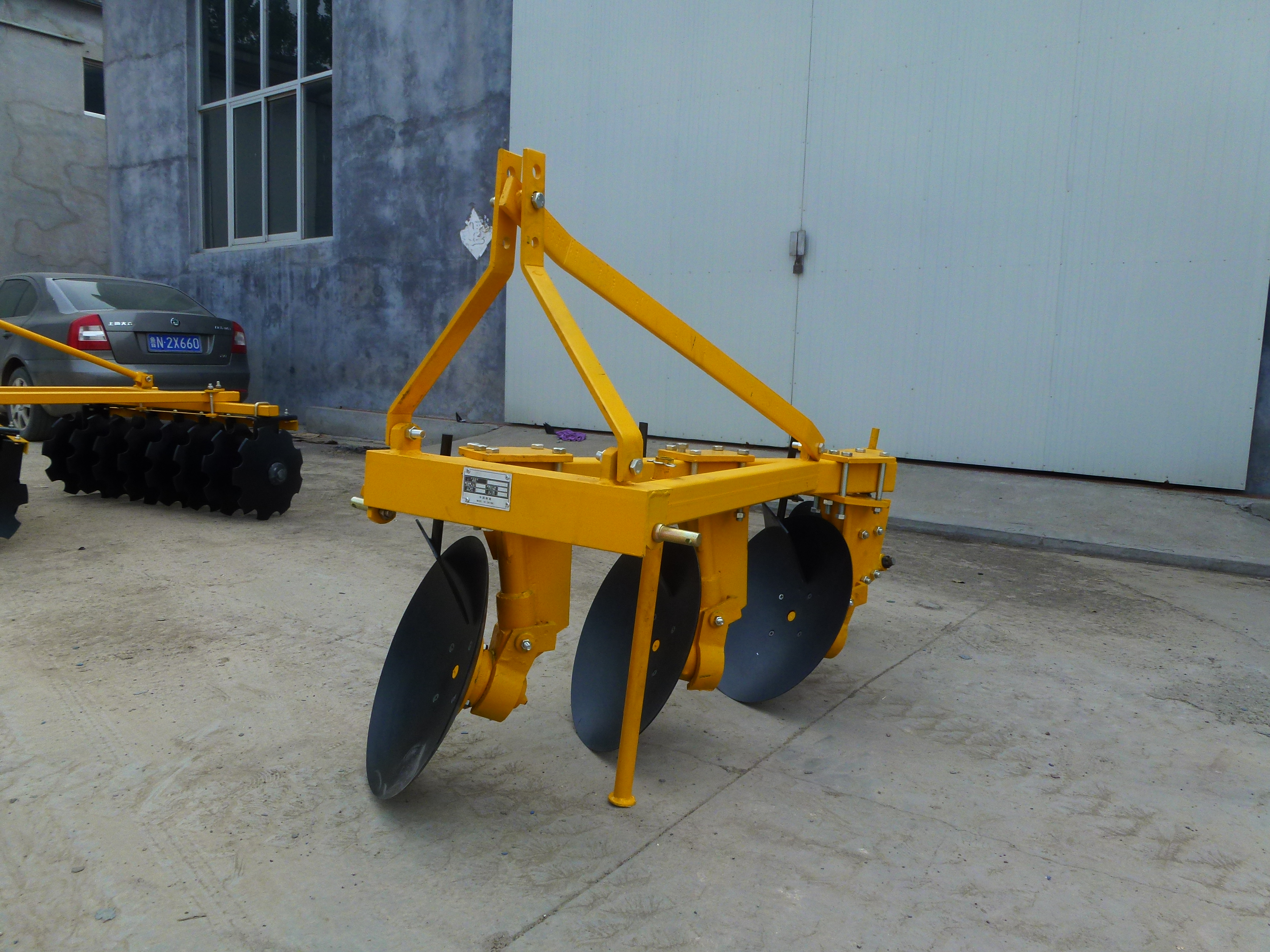

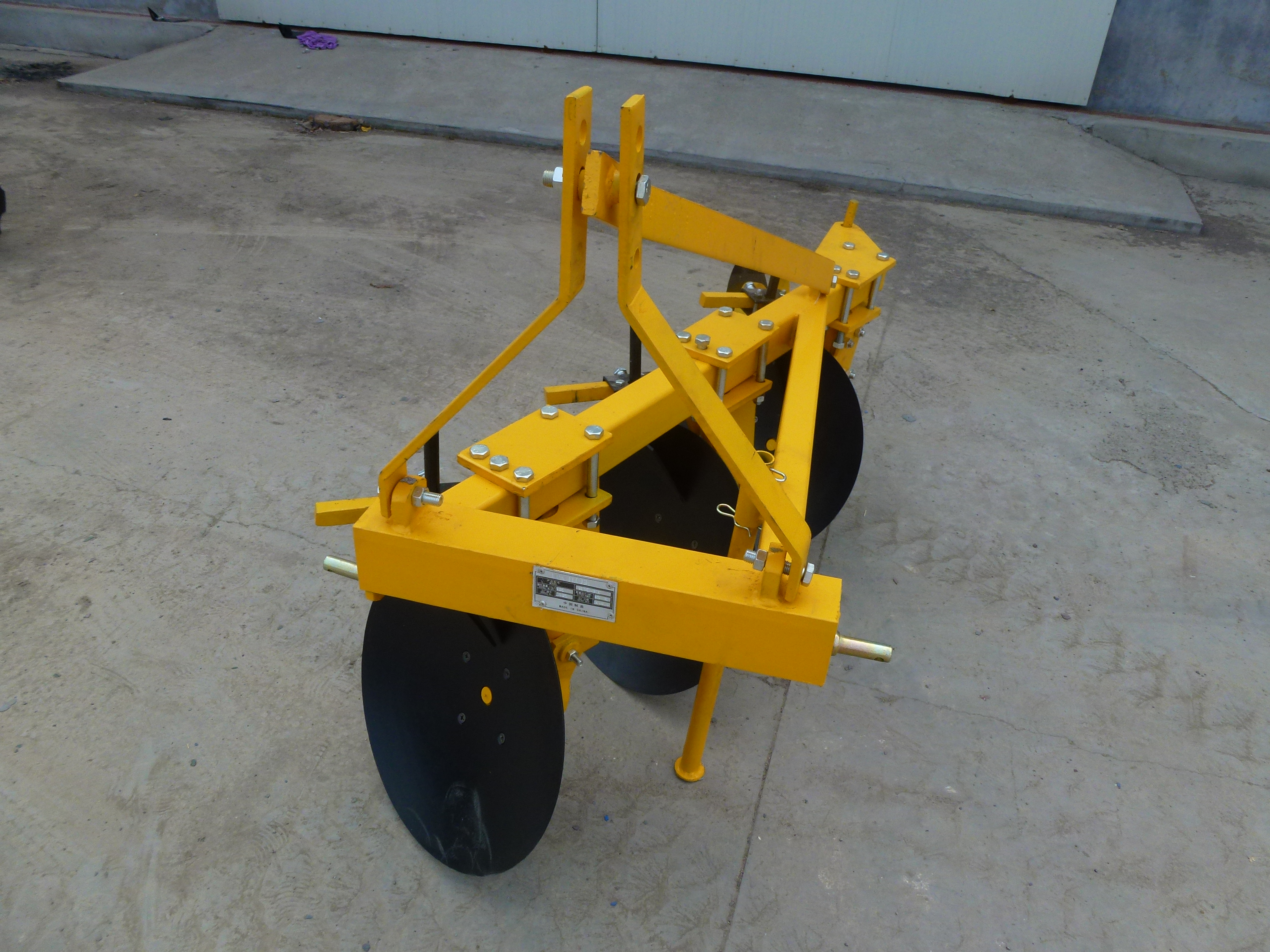

P1010206    P1010208

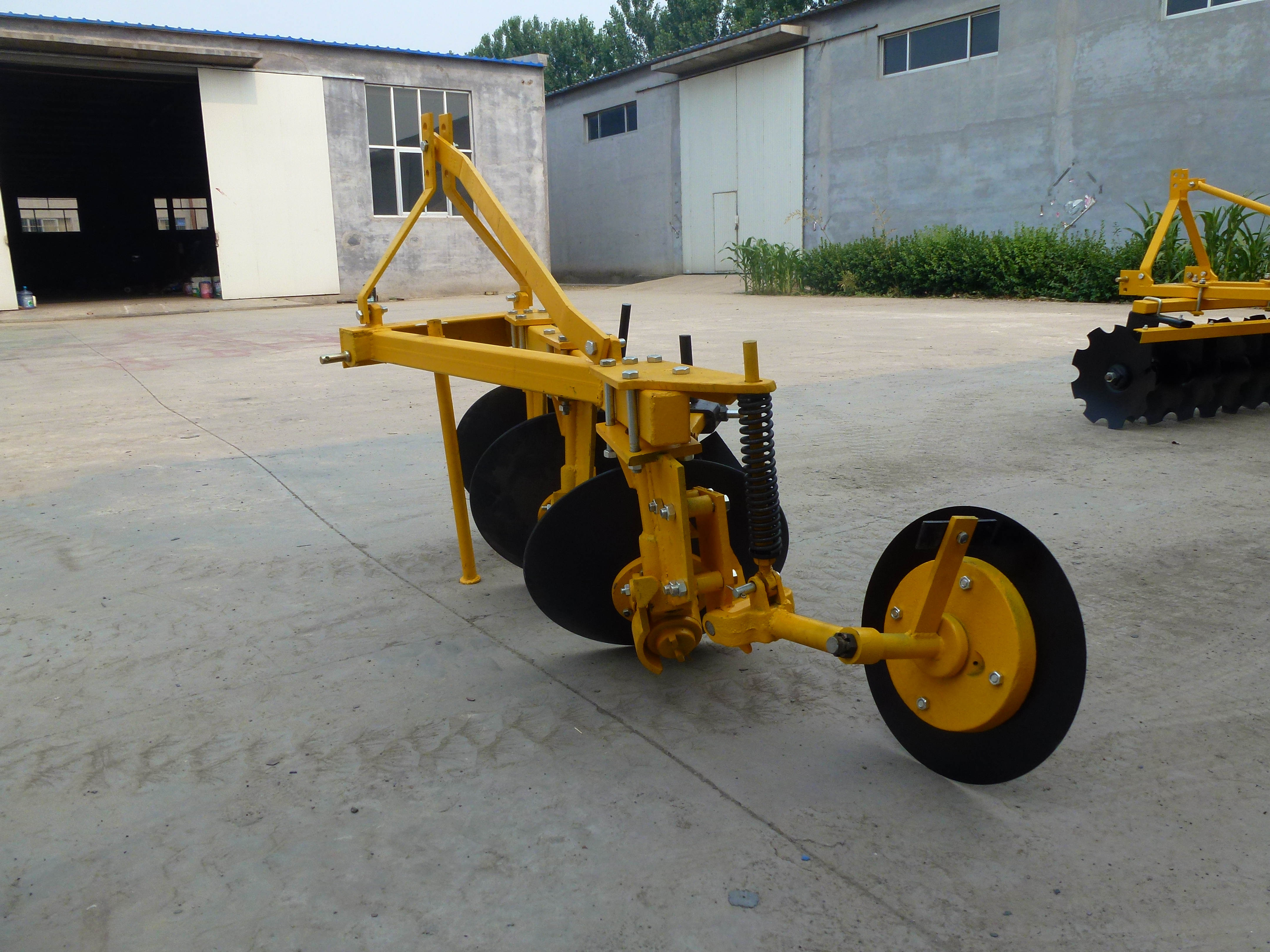

P1010212     P1010215


                                   Driven disc plough

Advantages:

l   It is a mounted driven disc plough for 4-wheels tractor through 3-point suspension system

l   This farm disc plow can be rotated actively active rotation

l   Less working resistance

l   The tractor disc plow is easy to cut stems of crops

l   Good effect of turning soil

l   This disc plough is also for dry field. It is a amphibious disc plough.

Model

单位Unit

1LYQ-320

1LYQ-420

1LYQ-520

1LYQ-622

1LYQ-722

1LYQ-822

 Working   width

mm

660

880

1100

1320

1540

1760

 Working   depth

mm

120~200

Q’ty of   disc


3

4

5

6

7

8

Disc   diameter

mm

510

560

 Speed of   input shaft

r/min

540-720

 Total   weight

kg

220

240

280

325

360

390

 Matched   power

hp

15-20

20-30

25-40

40-50

50-70

70-80

 Linkage



Three point   suspension I type


Three-point   suspension II type

 The   items selectable


 the inclination angle could be ±5°

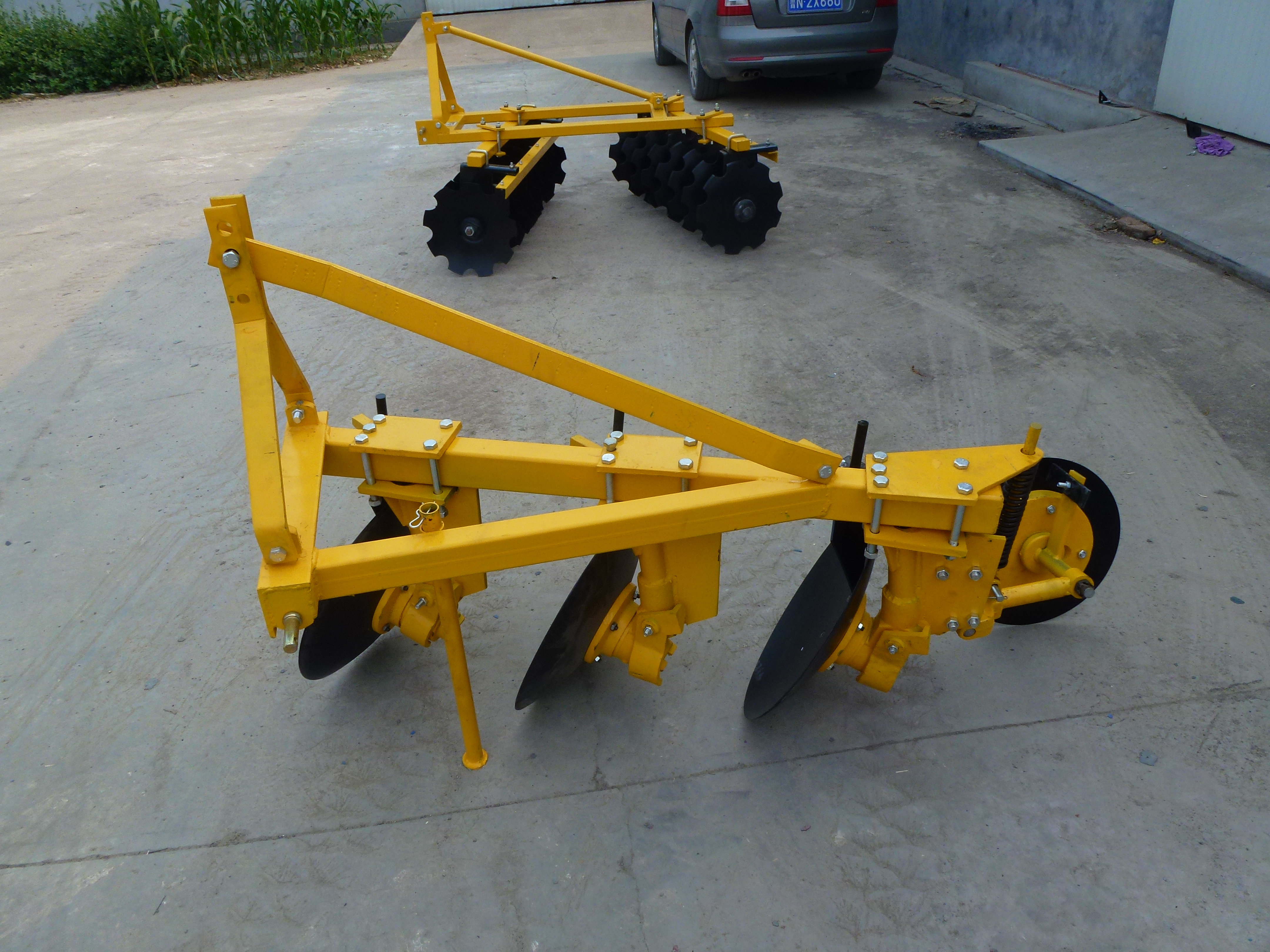

P1010209   P1010205

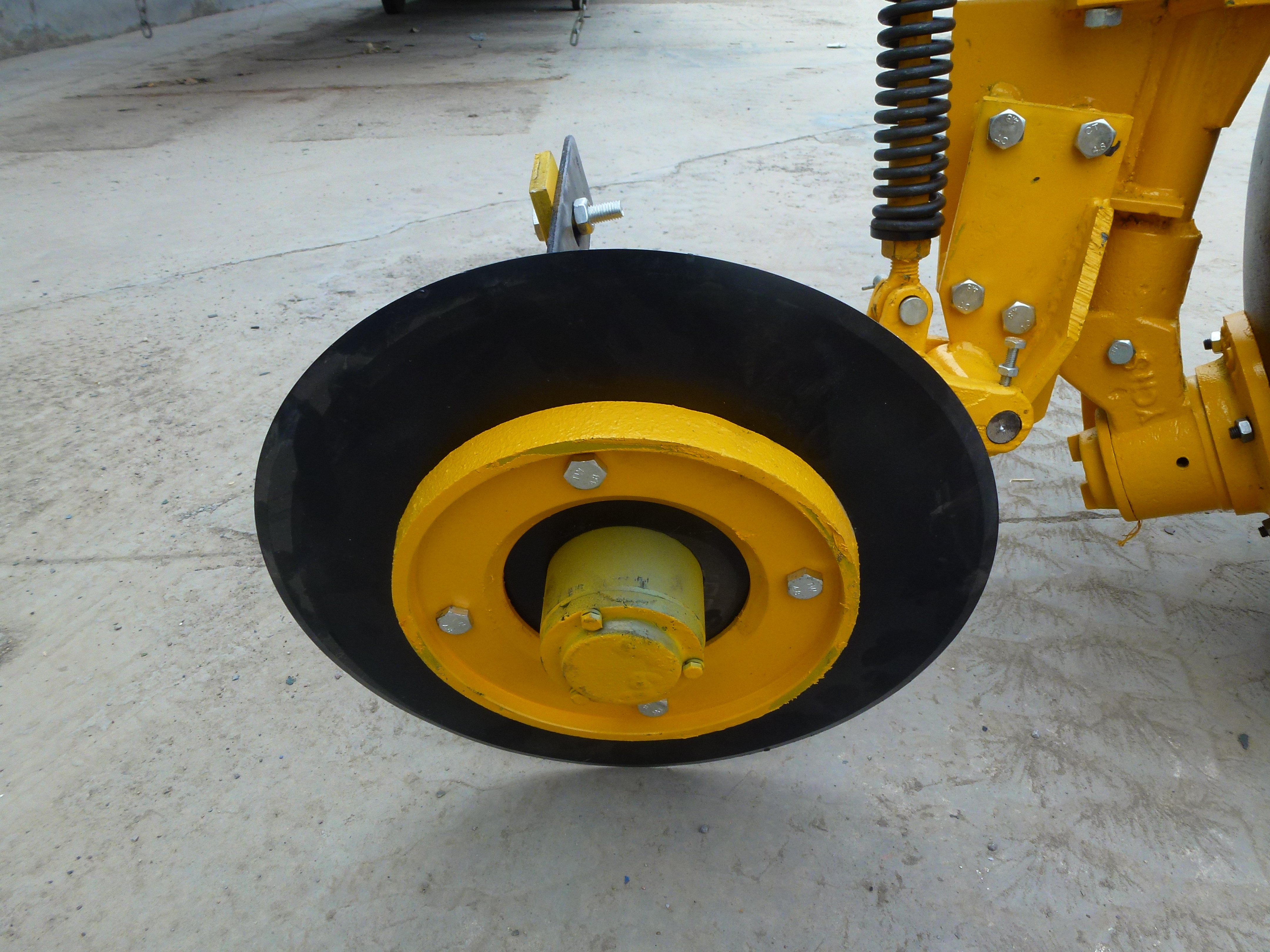

P1010217     P1010219
