Steel Share plow 1L

1L series share plow is a four-wheel tractor mounted plow, mainly used for plowing loam, the sand loam , cultivated and dry land.

Tractor 3point steel share plough mouldboard plow agricultural machine steel plow

1L series share plow is a four-wheel tractor mounted plow, mainly used for plowing loam, the sand loam , cultivated and dry land.

Advantages:

l This tractor farm plow has good efficiency

l The mouldboard plow is in simple adjustment

l Wide scope of application

l The width of plow share could be 20cm,25cm,30cm,35cm.

l Material of plough tip is 65Mn steel

l Working depth could be adjusted

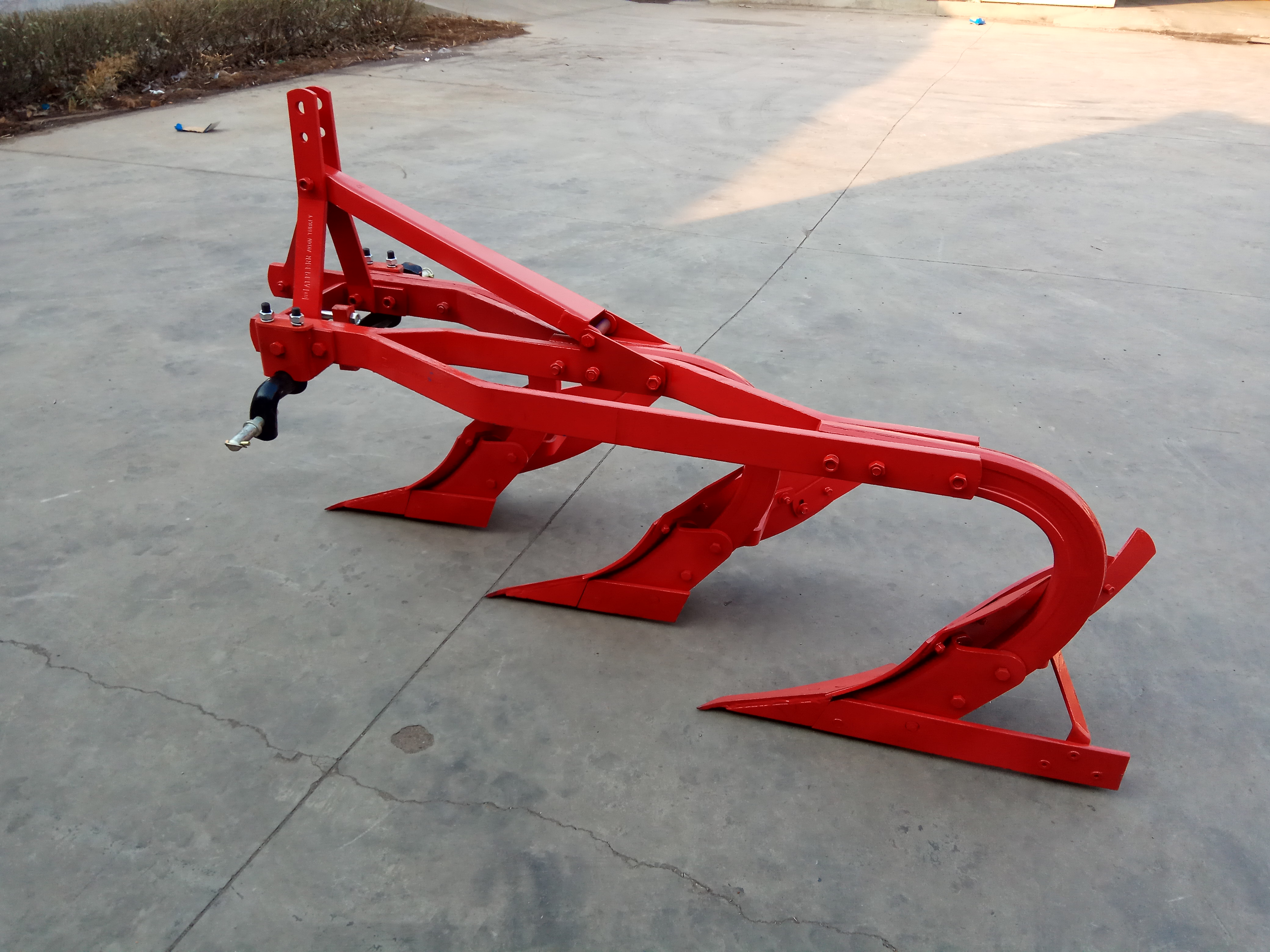

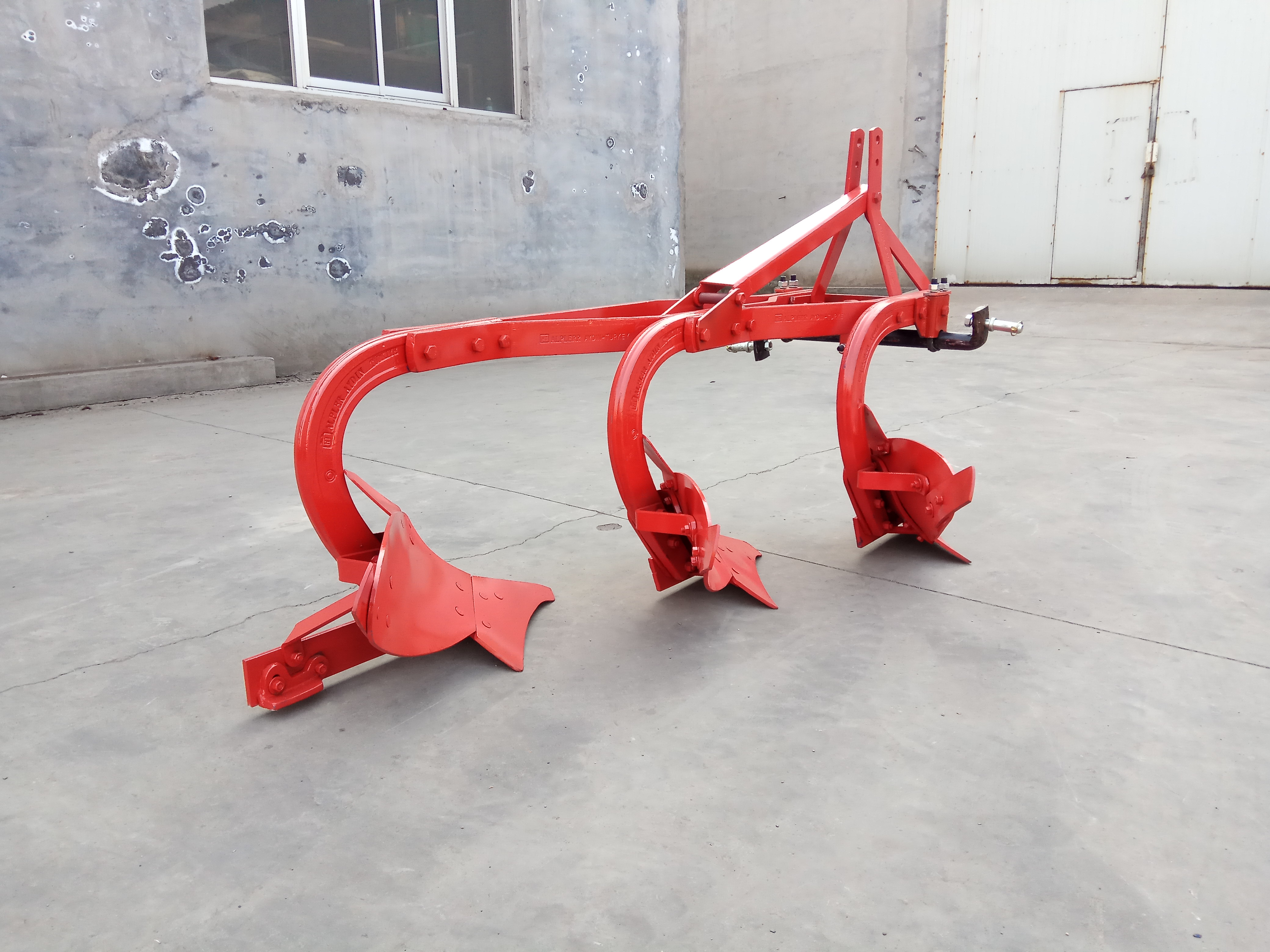

IMG_20170227_083639 IMG_20170227_083755

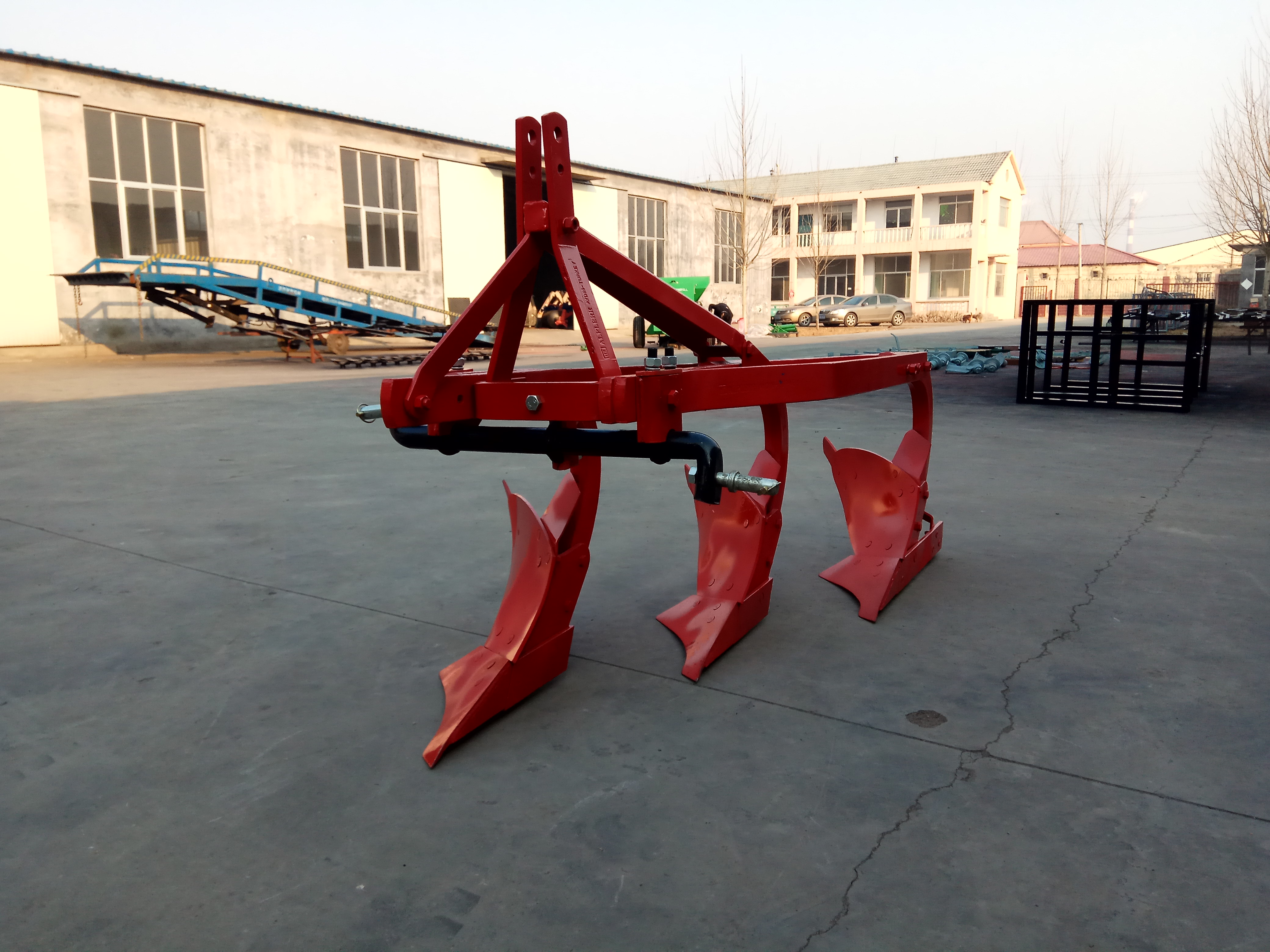

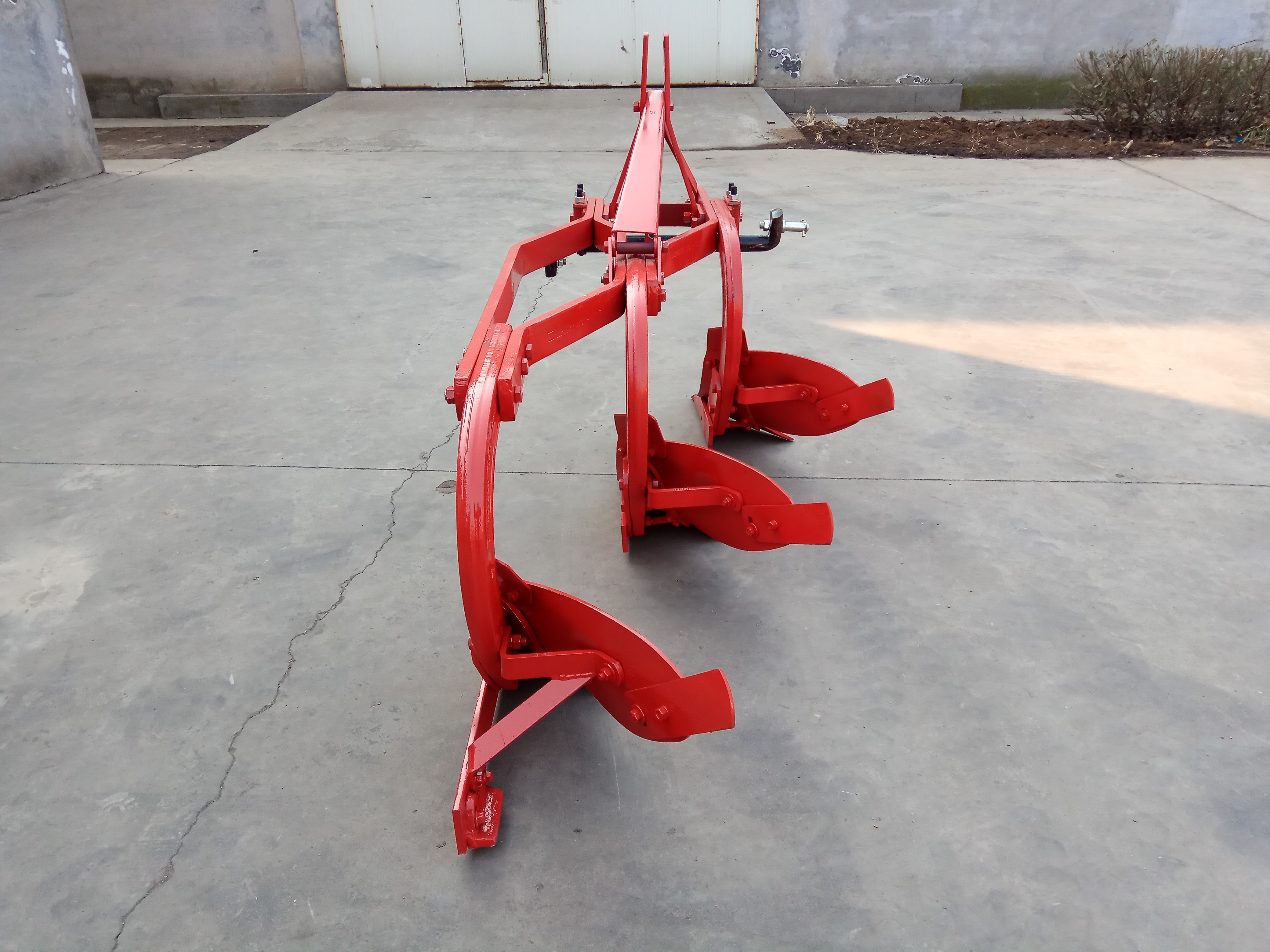

IMG_20170227_090856 IMG_20170227_083722

Model	单位	1L-330	1L-430	1L-530	1L-335	1L-435	1L-535
Working width	mm	900	1200	1500	1050	1400	1750
Working depth	mm	220-270
Number of bottoms		3	4	5	3	4	5
Total weight	kg	230	330	420	300	470	520
Matched power	hp	50	70	80	55	75	90
Linkage		II Three-point suspension II type
The items selectable

Model	单位	1L-330	1L-430	1L-530	1L-335	1L-435	1L-535
Working width	mm	900	1200	1500	1050	1400	1750
Working depth	mm	220-270
Number of bottoms		3	4	5	3	4	5
Total weight	kg	230	330	420	300	470	520
Matched power	hp	50	70	80	55	75	90
Linkage		II Three-point suspension II type
The items selectable
