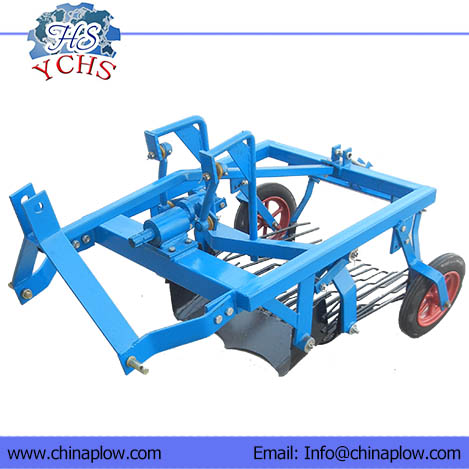

Potato Digger 4UD-1

Quantity:
sharethis sharing button
  • 4UD-1

  • Made In P.R.C

  • Standard Export Packages

  • One Set

  • 1

  • T/T

4U series of sweet potato harvester is mounted with the tractor of 12-60hp with back power and side power output shaft. Our tractor potato harvester is intended for potato excavation, tubers partial separation from the soil and tubers laying on field surface for their further picking up. A triangular beater is set on the potato harvester. The working principle of this potato digger is that the digging shovel digs up the soil and crops through the impetus of the tractor. And the digging shovel make crop and soil separate though vibration sieve, the soil first drip down from the clearance of vibration sieve, finally the crop crashed down on to the road from the back.
Advantages:
It is a tractor mounted potato harvester for 20-30hp tractor.
Dig the potatoes safely without cutting or damaging single potato.
Not to affect the next crop's growth.

Model Unit 4UD-1
Harvesting rows   1
Working width Mm 600-800
Working depth Mm 100-250
PTO Rotation speed  r/min 540-720
PTO shaft spline   6 spline
Total weight Kg 140
Matched power Hp 20-30
Linkage   Three-point suspension I type
The items selectable   PTO transmission shaft in 8 spline
