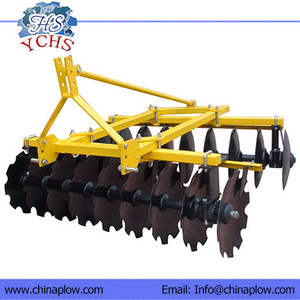

Medium Type Disc Harrow

Disc harrow is mainly applicable to clean the crop residue before tillage, break the hardened a break the hardened soil and return the chopped straw to the soil, and also can crash the soil after tillage and level the land.
It can be used as tillage machine instead of plow on the cultivated land. With the efficient productivity, reasonable utilization of the power, great ability of cutting and shattering the soil , the soil surface is smooth and loosening after harrowing, it is well suitable for heavy clay soil, waste land and weedy field as well.
Availability:
Quantity:
sharethis sharing button
  • 1BJX-1.6

  • YCHS

                           Full suspension medium type disc harrow

Disc harrow is mainly applicable to clean the crop residue before tillage, break the hardened a break the hardened soil and  return the chopped straw to the soil, and  also can crash the soil after tillage and level the land.

It can be used as tillage machine instead of plow on the cultivated land. With the efficient productivity, reasonable utilization of the power, great ability of cutting and shattering the soil , the soil surface is smooth and loosening after harrowing, it is well suitable for heavy clay soil, waste land and weedy field as well.

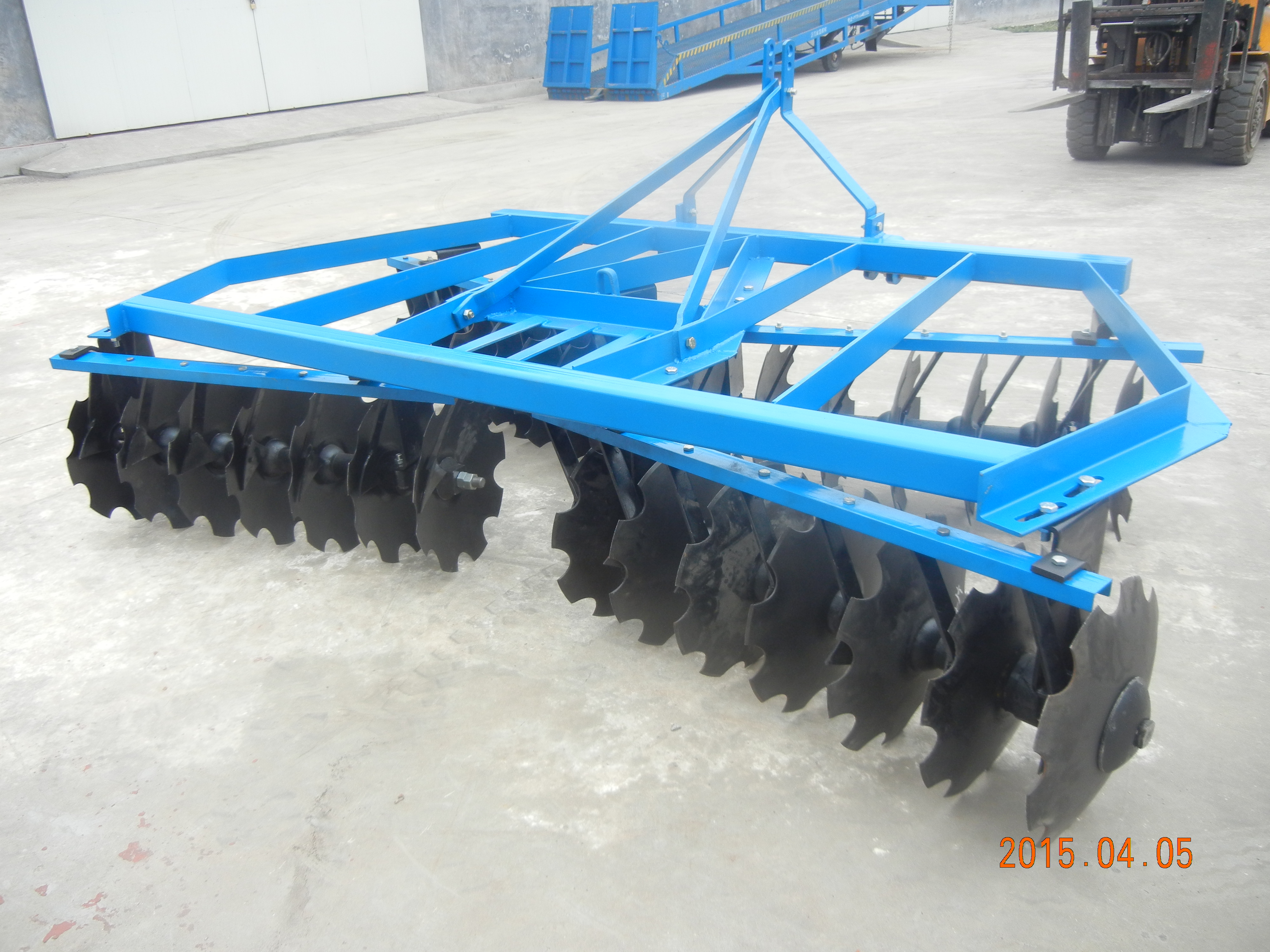

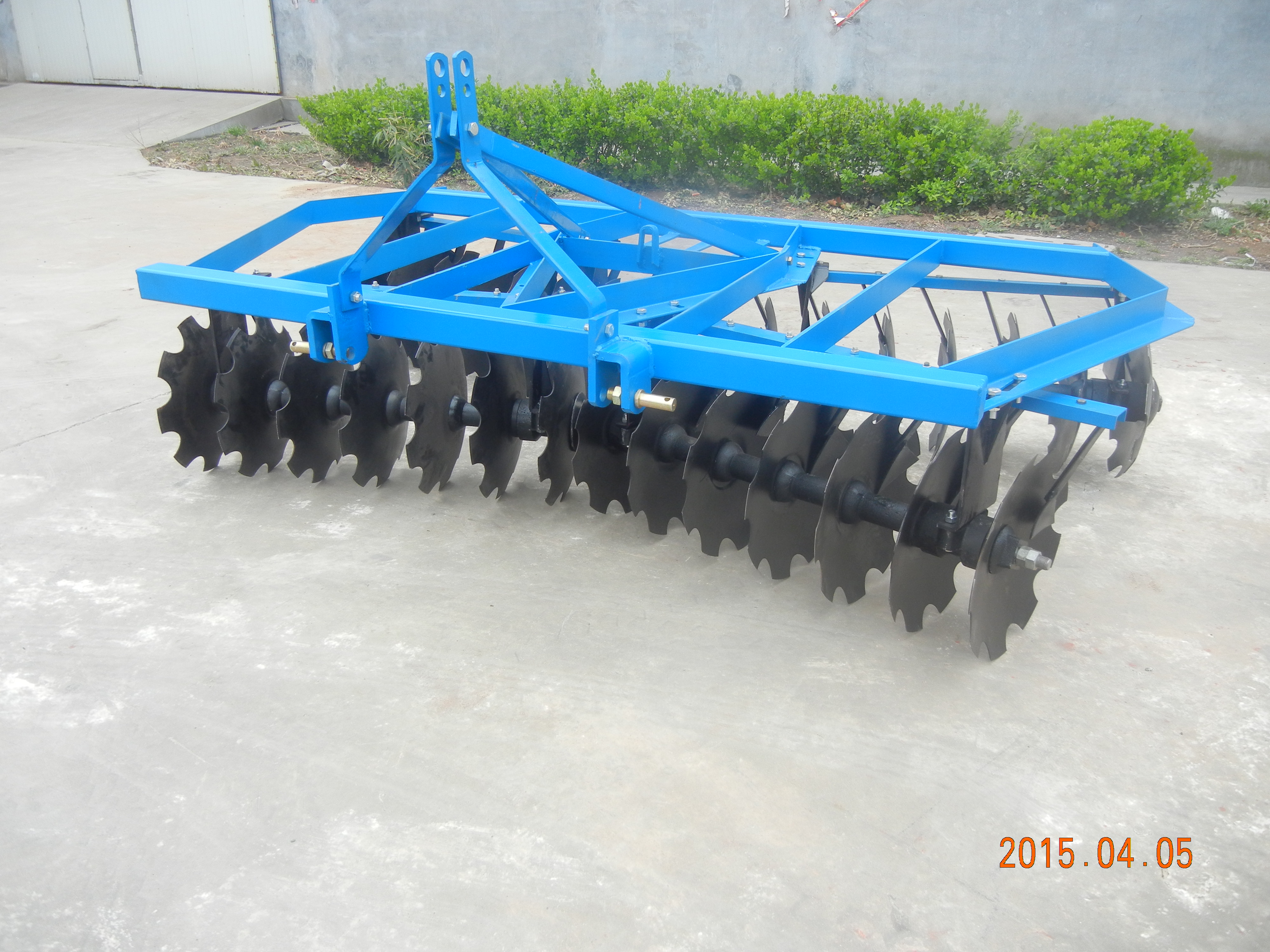

DSCN4166      DSCN4171

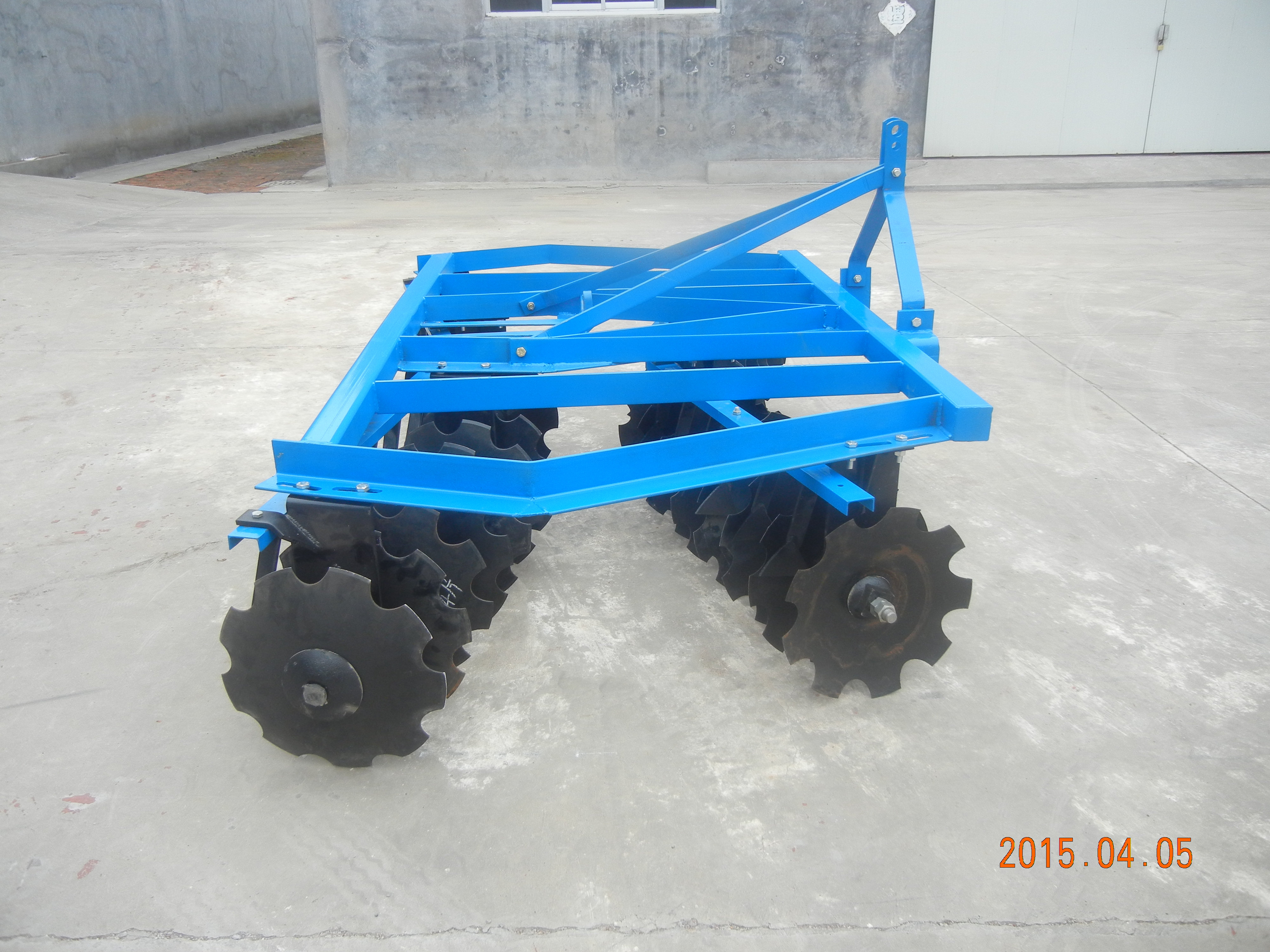

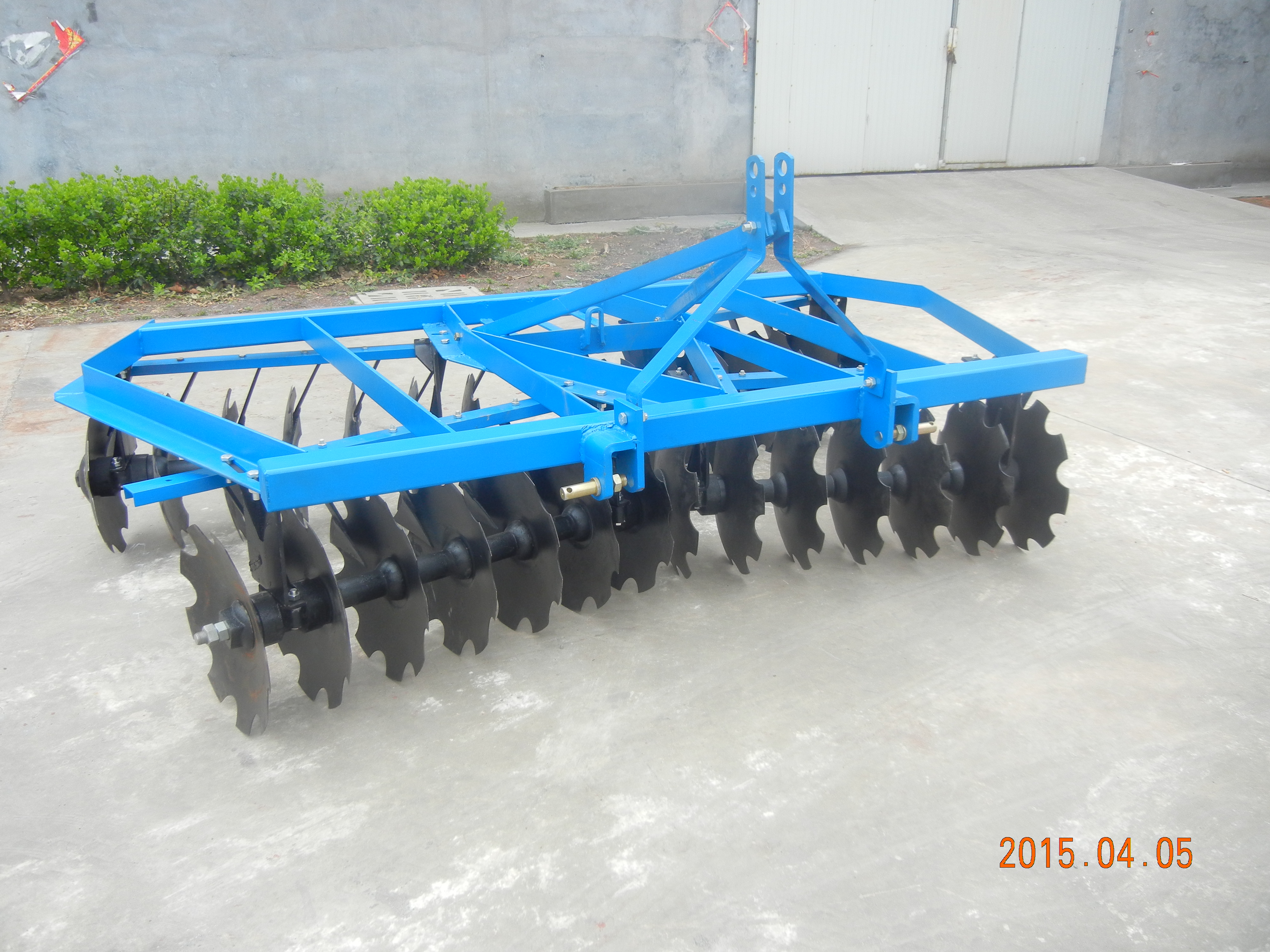

DSCN4175       DSCN4184

                       Full suspension medium type disc harrow

  Advantages:

l   It is a mounted medium disc harrow for 30-80hp tractor .

l   Notched disc blade of this tractor offset disc harrow in front, and flat plough disc in rear.

l   Fit the scraper for each disc blade to clean the objects.

The working depth can be adjusted freel


 Model

单位unit

1BJX-1.6

1BJX-1.8

1BJX-2.0

1BJX-2.2

1BJX-2.4

1BJX-2.5

Working   width

mm

1600

1800

2000

2200

2400

2500

Working   depth

mm

140






Q’ty of   disc


14

16

18

20

22

24

Total   weight

kg

350

380

420

470

540

650

Matched   power

hp

30

40

50

60

70

80

Linkage


I类三点悬挂Three point   suspension I type

II类三点悬挂Three-point   suspension II type


The   items selectable

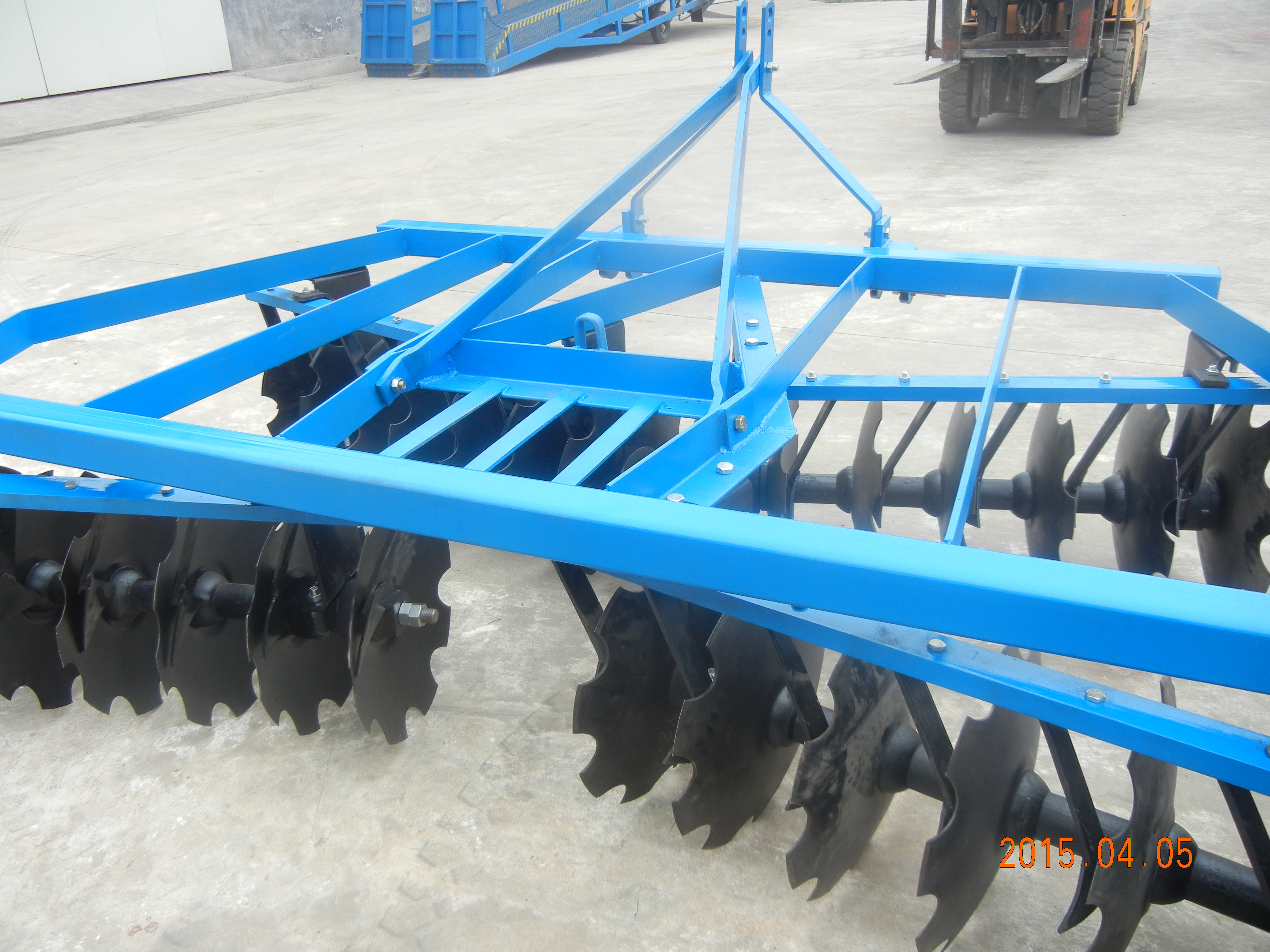

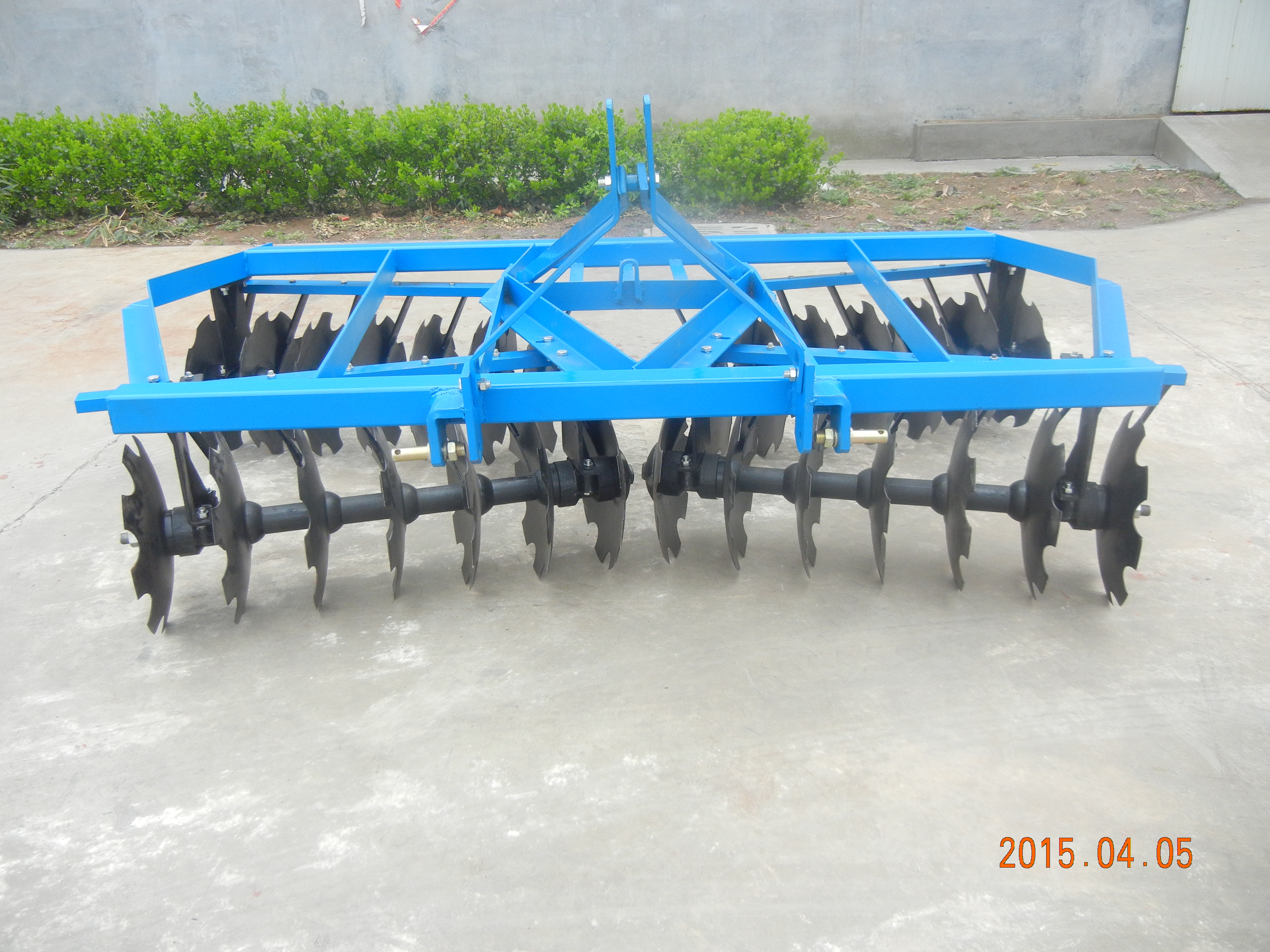

      DSCN4181    DSCN4172
