Hydraulic Double Way Disc plough

Quantity:
sharethis sharing button
  • 1LY(SX)

  • Made In P.R.C.

  • Standard Export Packages

  • One Set

  • 1

  • T/T

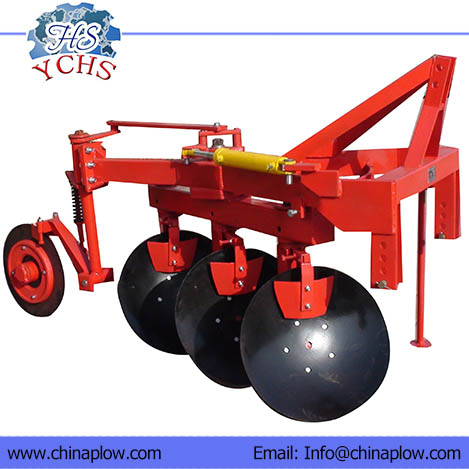

1LY(SX) Series Hydraulic reversible disc plough is matched with four wheel tractor,the discs of plough are revolving to furrow the land during operation.,it can come true the plowing work in double way. Especially it is suitable for the operation in the land which has the weeds, stems, frictional soil, and small brick.
Advantages:
It is hydraulic double-way disk plough for 4-wheel tractor.
Has less idle stroke.
Less working resistance when operated.
This Double Way tractor disc plough is easy to cut off stems and roots.
No Winding grass, no block and no hip building-up.
This mounted hydraulic disc plough has own hydraulic system to keep the working in double way.

Model   1LY(SX)-325 1LY(SX)-425 1LY(SX)-525
Working width mm 750 1000 1250
Working depth mm 250~300
Q’ty of disc   3 4 5
Total weight kg 600 720 820
Matched power hp 50 90-120 130-150
Linkage   Three-point suspension II type;hydraulic output(difunctional oil cylinder;oil connection in 1/2” thread
The items selectable    (M22*1.5/M20*1.5/M18*1.5)
Scraper or oil connection (M22*1.5/M20*1.5/M18*1.5)
Hydraulic disc plough, Yucheng Hengshing Machinery Co., Ltd
Hydraulic Disc plow, Yucheng Hengshing Machinery Co., Ltd
