Double Way Disc Plough

1LY(SX) Series Hydraulic reversible disc plough is matched with four wheel tractor,the discs of plough are revolving to furrow the land during operation.,it can come true the plowing work in double way. Especially suitable for the operation in the land which have the weeds, stems, frictional soil , small brick .
Availability:
Quantity:
sharethis sharing button
  • 1LY-325

  • YCHS

1LY(SX) Series Hydraulic reversible disc plough is matched with four wheel tractor,the discs of plough are revolving to furrow the land during operation.,it can come true the plowing work in double way. Especially suitable for the operation in the  land which have the weeds, stems, frictional soil , small brick .

Advantages:

l   It is hydraulic double-way disk plough for 4-wheel tractor

l   Has Less  idle stroke

l   Less  working resistance when operated

l   This Double Way tractor disc plough is easy to cut off stems and roots .

l   No Winding grass ,no block and no hip building-up.

l   This mounted hydraulic disc plough has own hydraulic system to keep the working in double way.

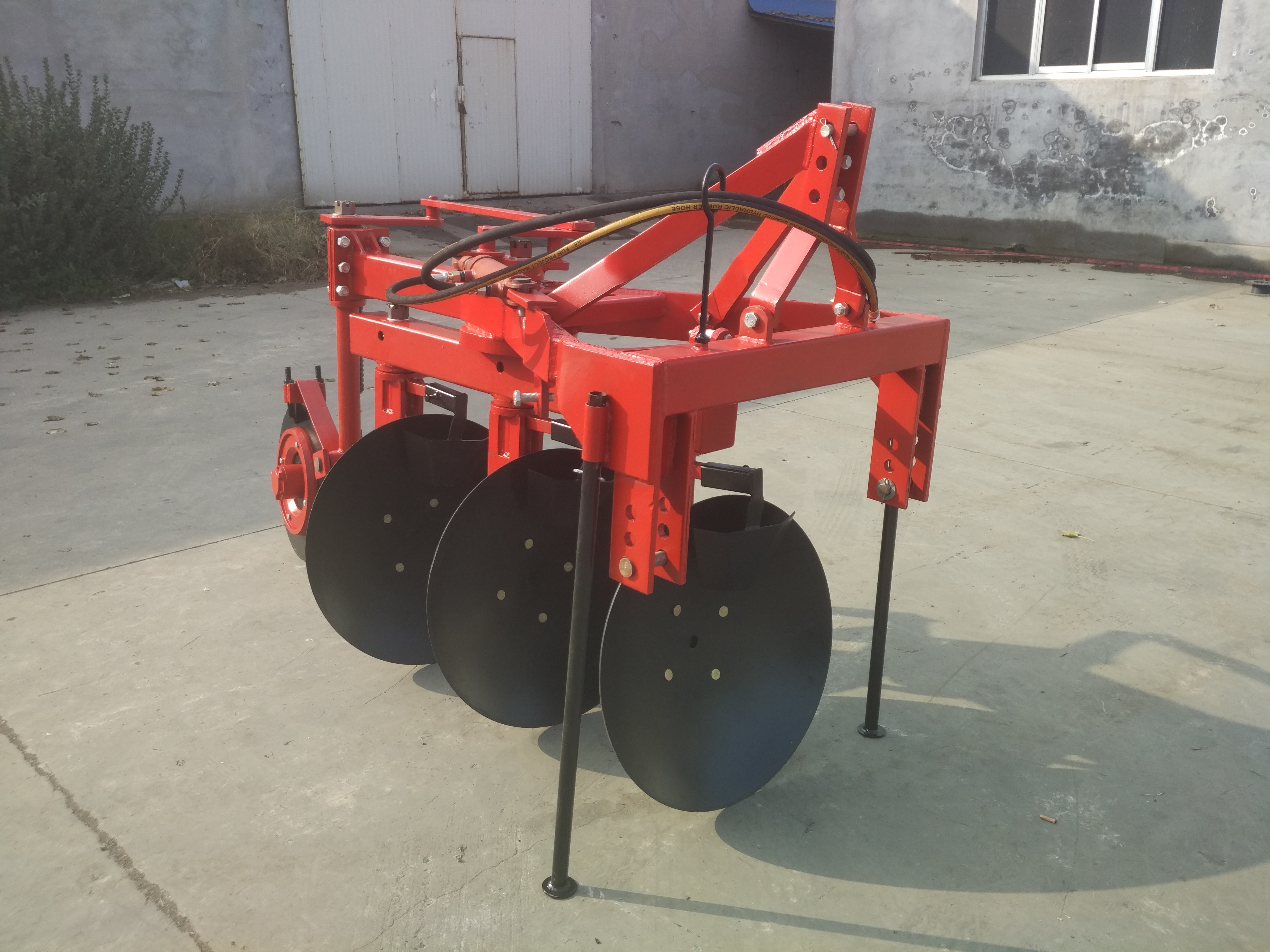

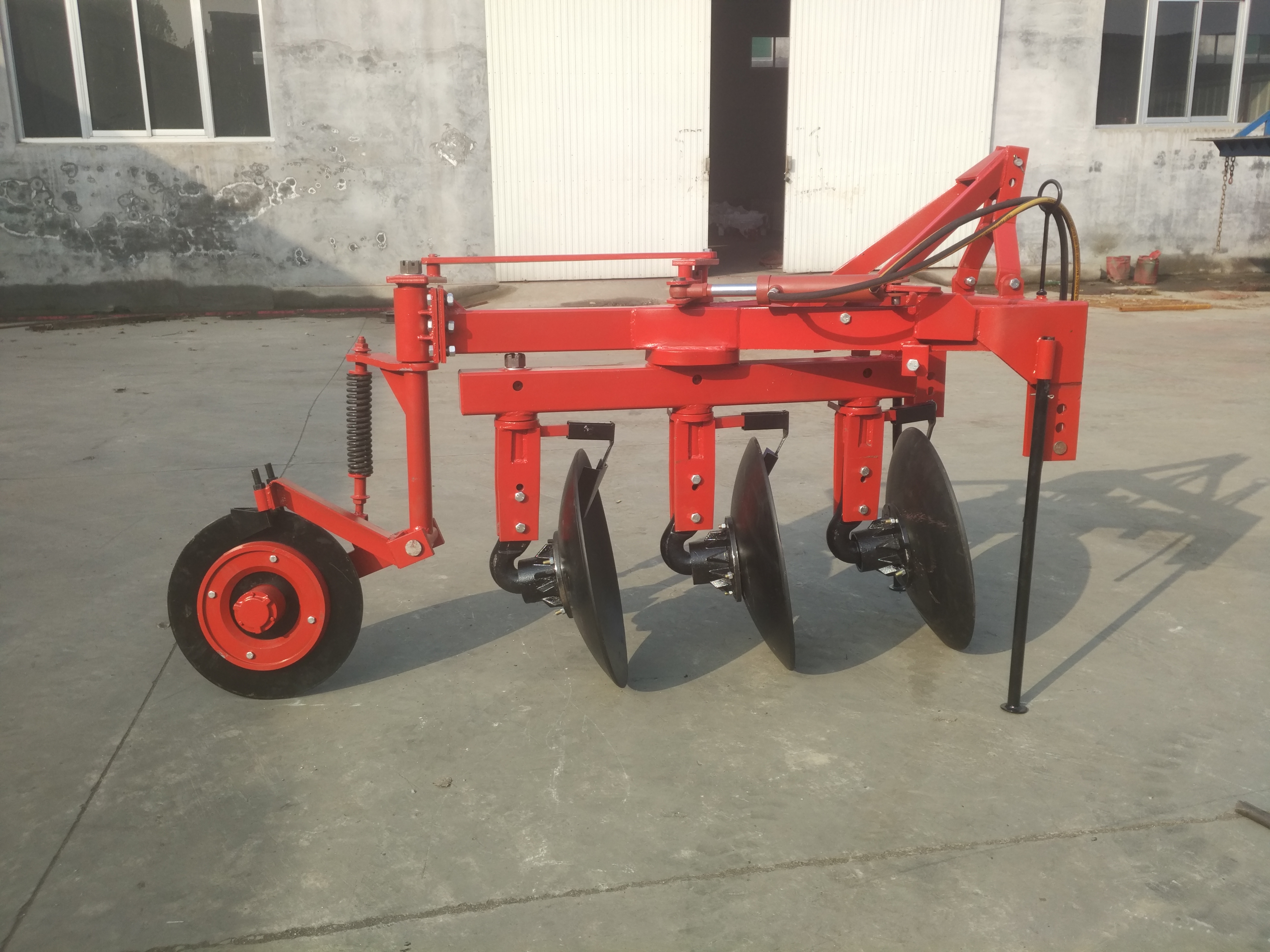

          IMG_20161104_092515    IMG_20161104_094354

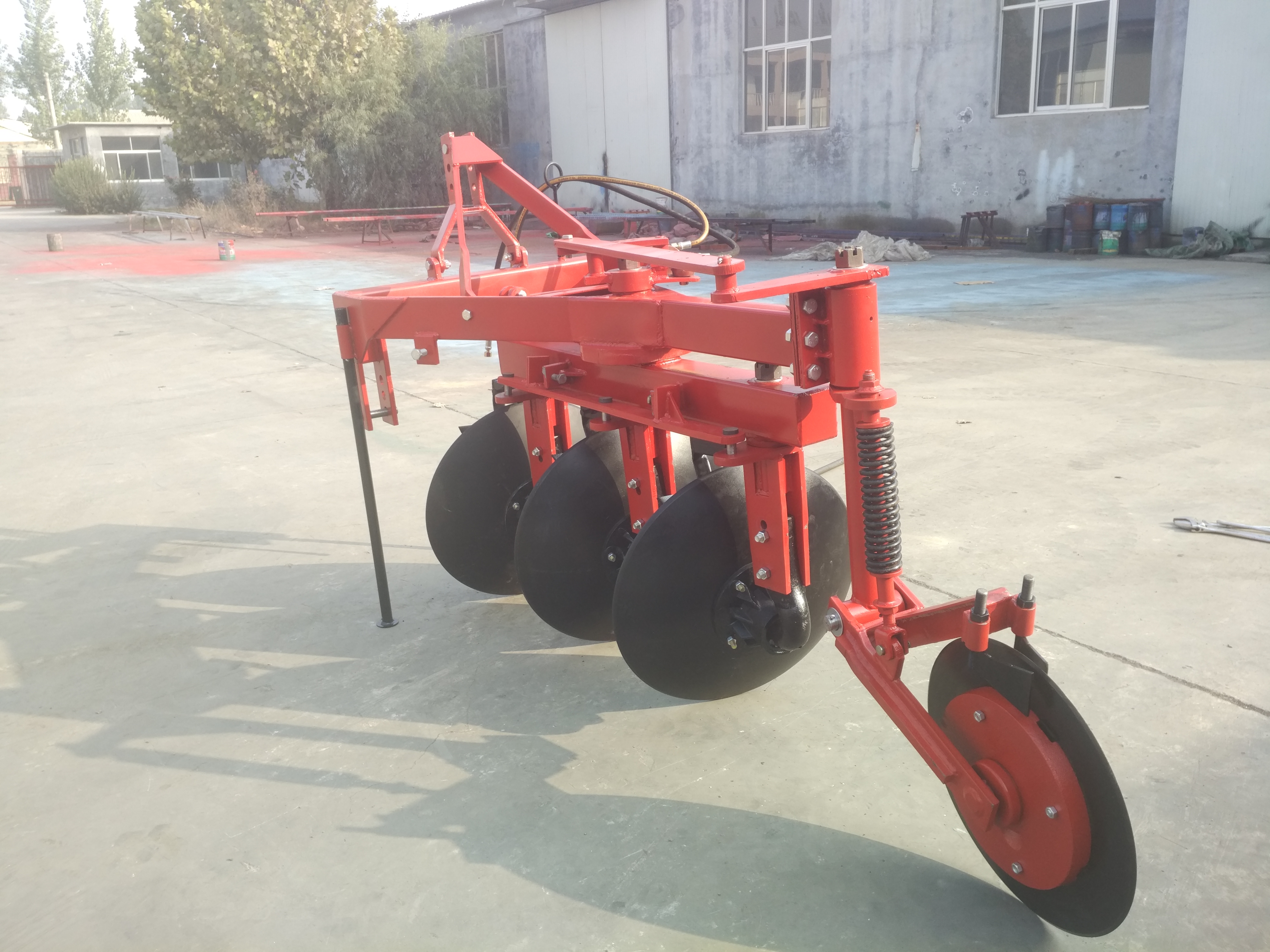

          IMG_20161104_092611     IMG_20161104_092448



Model

单位

1LY(SX)-325

1LY(SX)-425

1LY(SX)-525

Working   width

mm

750

1000

1250

Working   depth

mm

250~300

 Q’ty of disc


3

4

5

Total   weight

kg

600

720

820

Matched   power

hp

50

90-120

130-150

Linkage


II类三点悬挂,1路液压输出(双作用油缸),油管接头1/2”锥螺纹

Three-point   suspension II type;hydraulic output(difunctional oil cylinder;oil connection   in 1/2” thread

 The   items selectable


可选装刮土器,可选配油管接头(M22*1.5/M20*1.5/M18*1.5)

Scraper or oil   connection (M22*1.5/M20*1.5/M18*1.5)

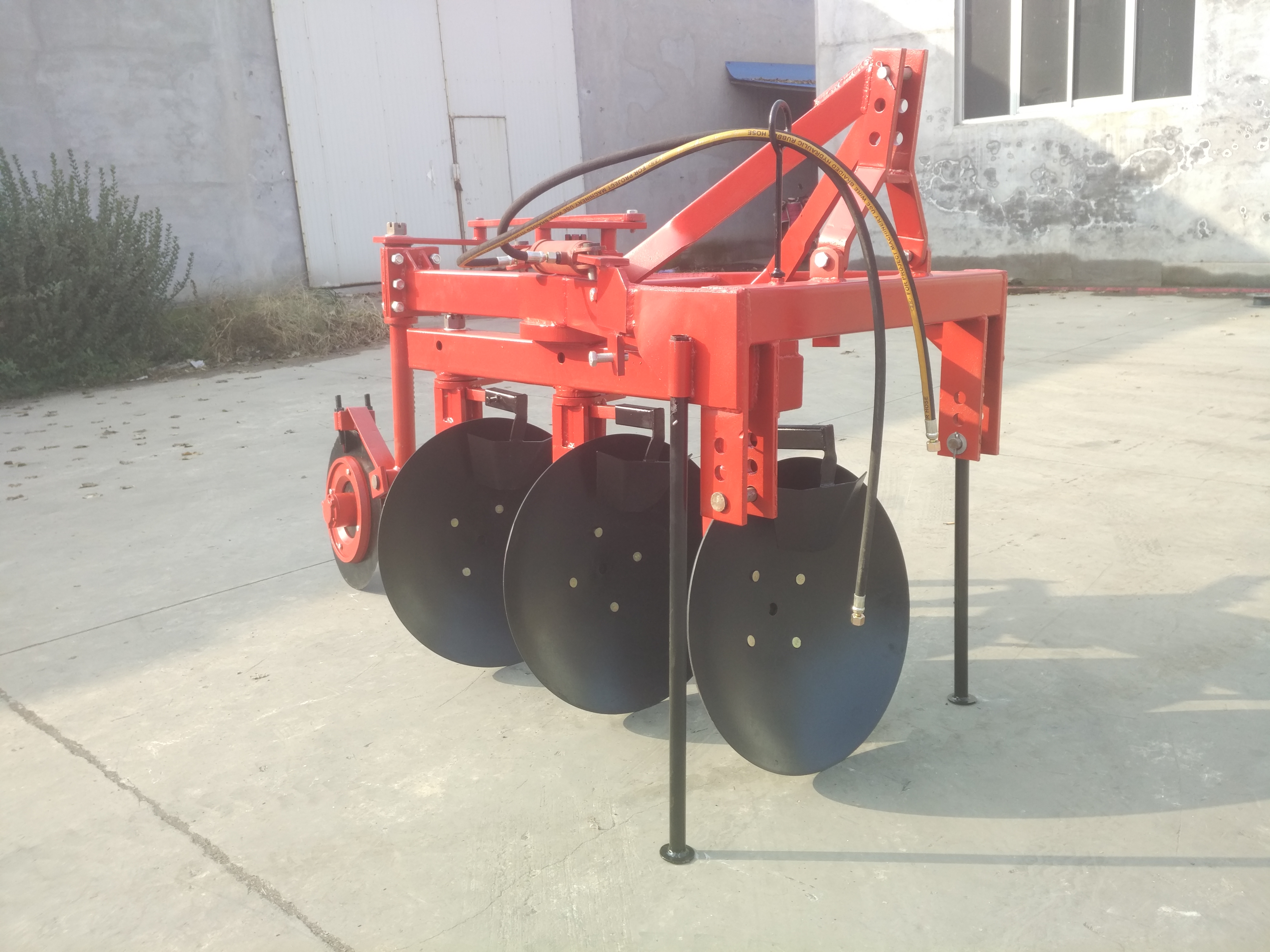

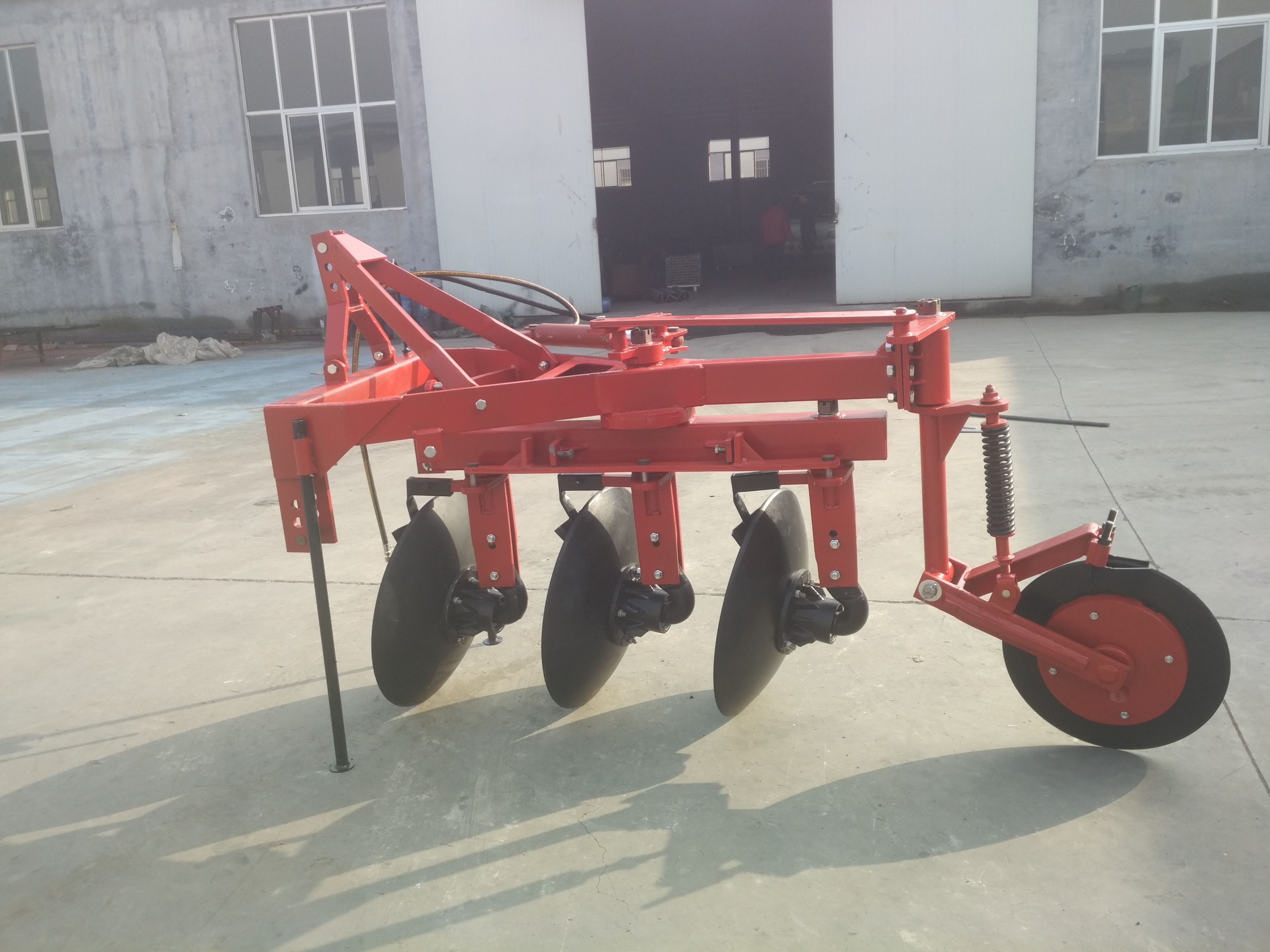

IMG_20161104_092530 IMG_20161104_092634
