1LF Hydraulic reversible plough flip plough

1LF hydraulic reversible plow is mounted with four-wheel tractor; it is used for the loam,sand loam , cultivated and dry land ,it can finish the furrowing work in double way.
Availability:
Quantity:
sharethis sharing button
  • 1LF

  • YCHS

                           Agriculture machinery equipment Mouldboard Plough Hydraulic reversible plough for sale


1LF hydraulic reversible plow is mounted with four-wheel tractor; it is used for the loam,sand loam , cultivated and dry land ,it can finish the furrowing work in double way.

Advantages:

l   The hydraulic reversible plough for 4-wheel tractor has High efficiency

l   Saving labor and time ,The ground flat after plowing

l   Less idle stroke in the control of hydraulic system.

l   The width of tractor plow share can  be 30cm,35cm.

l   Material of plough tip is 65Mn steel

l   Working depth could be adjusted by the depth roller

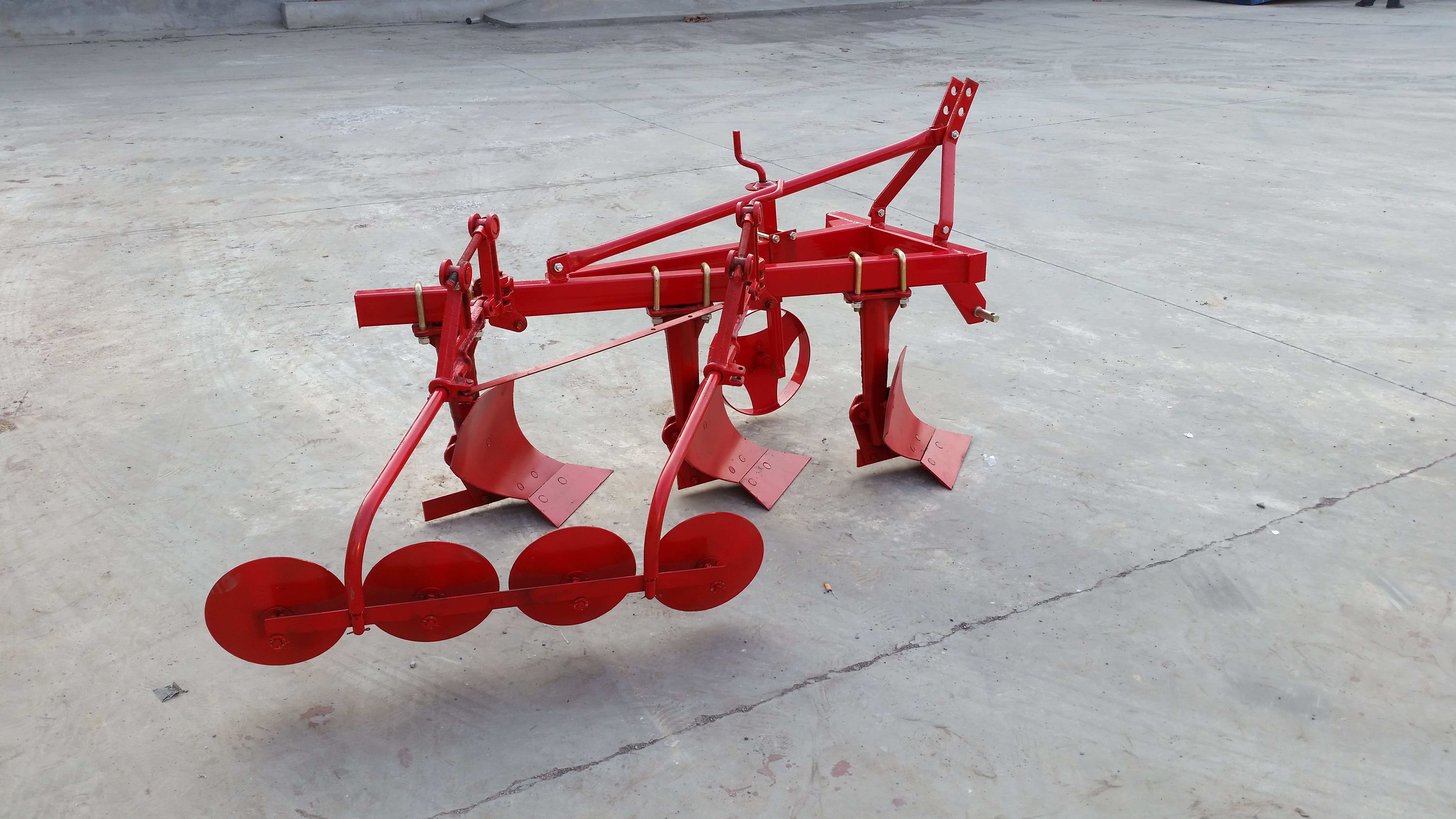

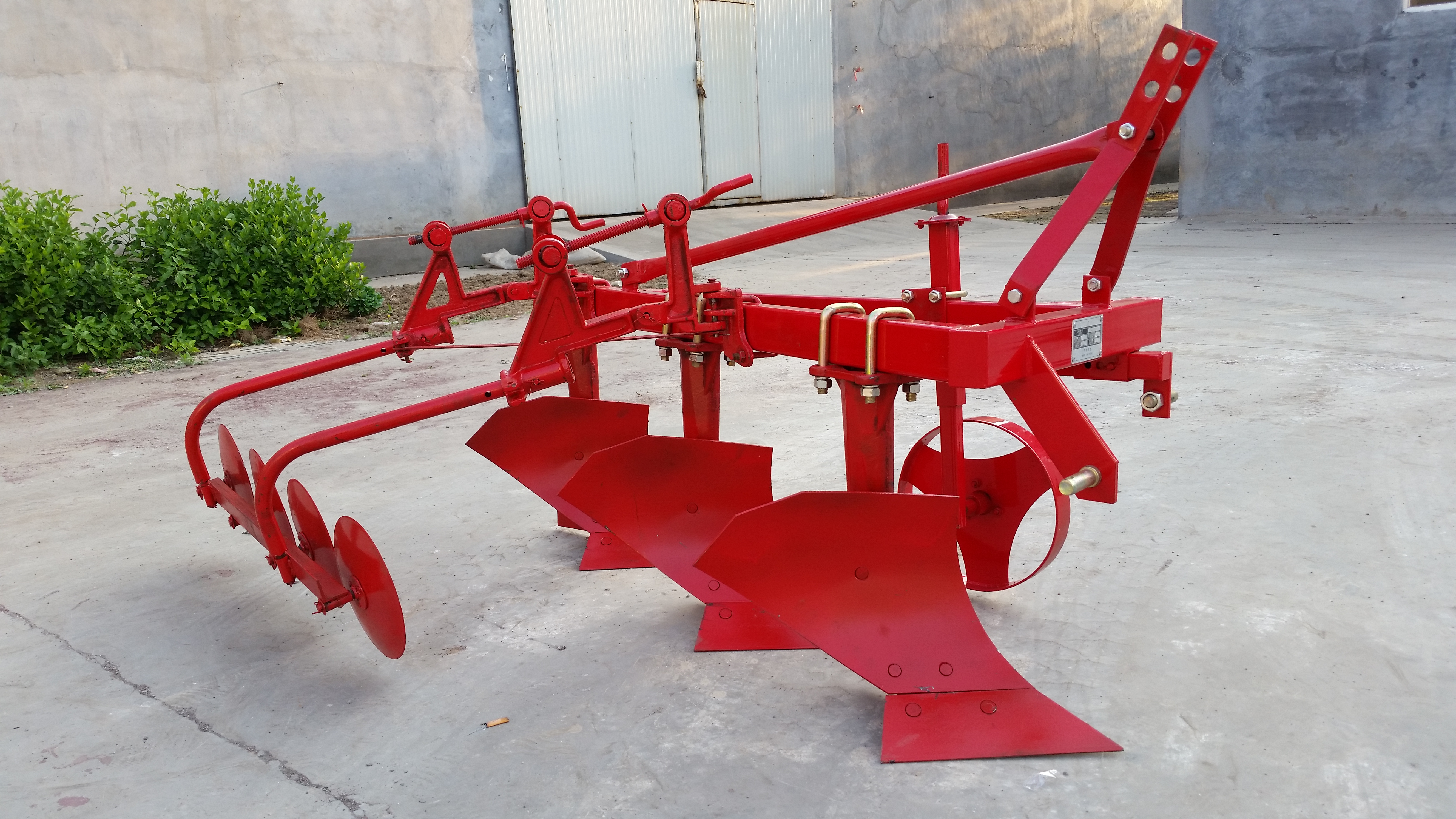

20150427_174324    20150427_174212

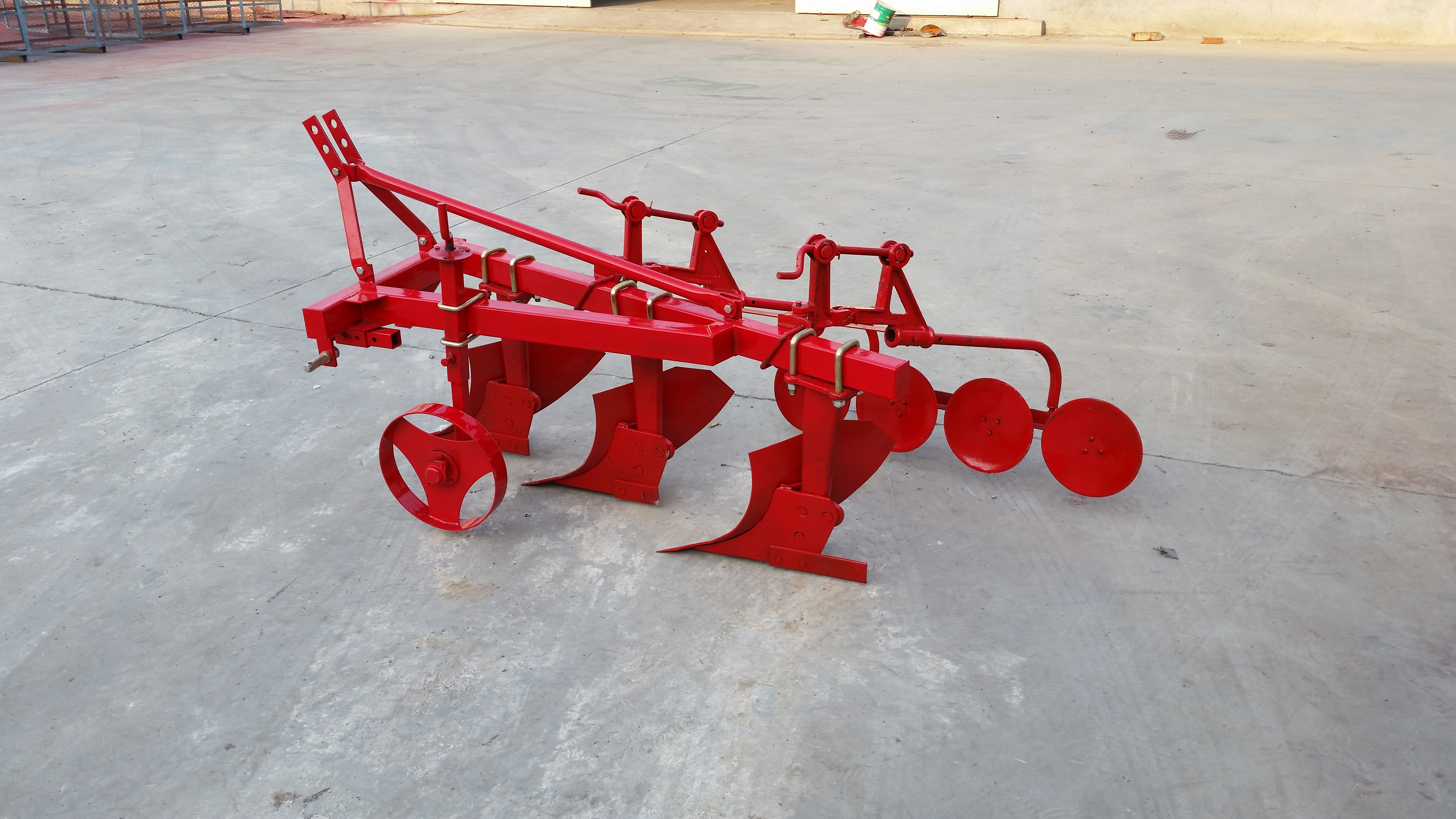

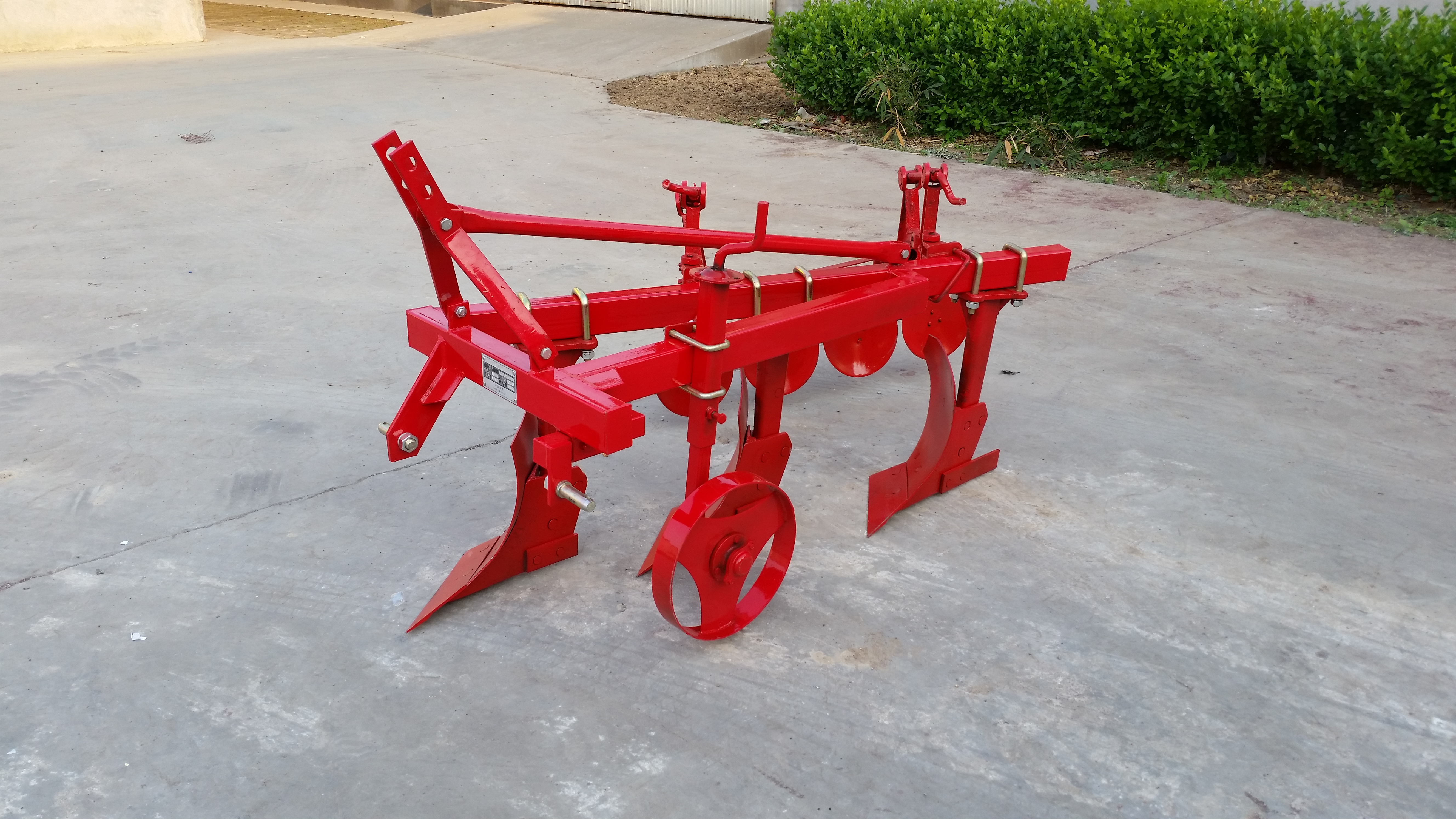

20150427_174246     20150427_174300

            1LF Hydraulic reversible plough flip plough

Advantages:

l   The hydraulic reversible plough for 4-wheel tractor has High efficiency

l   Saving labor and time ,The ground flat after plowing

l   Less idle stroke in the control of hydraulic system.

l   The width of tractor plow share can  be 30cm,35cm.

l   Material of plough tip is 65Mn steel

l   Working depth could be adjusted by the depth roller


Model

单位

1LF-330

1LF-430

1LF-530

1LF-335

1LF-435

1LF-535

 Working   width

mm

900

1200

1500

1050

1400

1750

 Working   depth

mm

220-270

 Number   of bottoms


6

8

10

6

8

10

 Total   weight

kg

580

750

950

620

800

1000

Matched   power

hp

50

70

80

55

75

90

 Linkage


II类

Three-point   suspension II type ,hydraulic output(difunctional oil cylinder),oil   connection in 1/2” thread

选装配置 The   items selectable


可选配油管接头(M22*1.5/M20*1.5/M18*1.5)   oil connection selectable

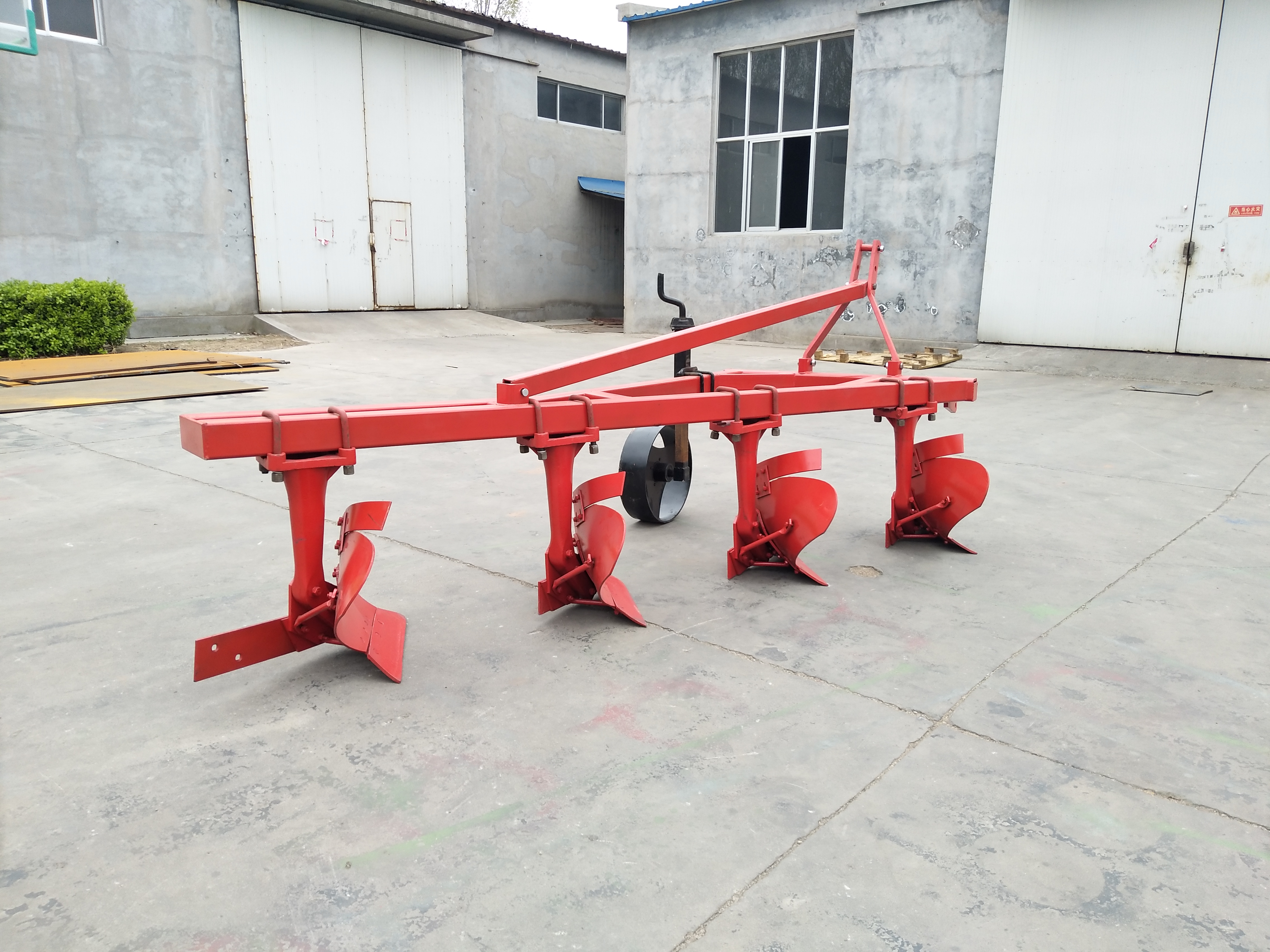

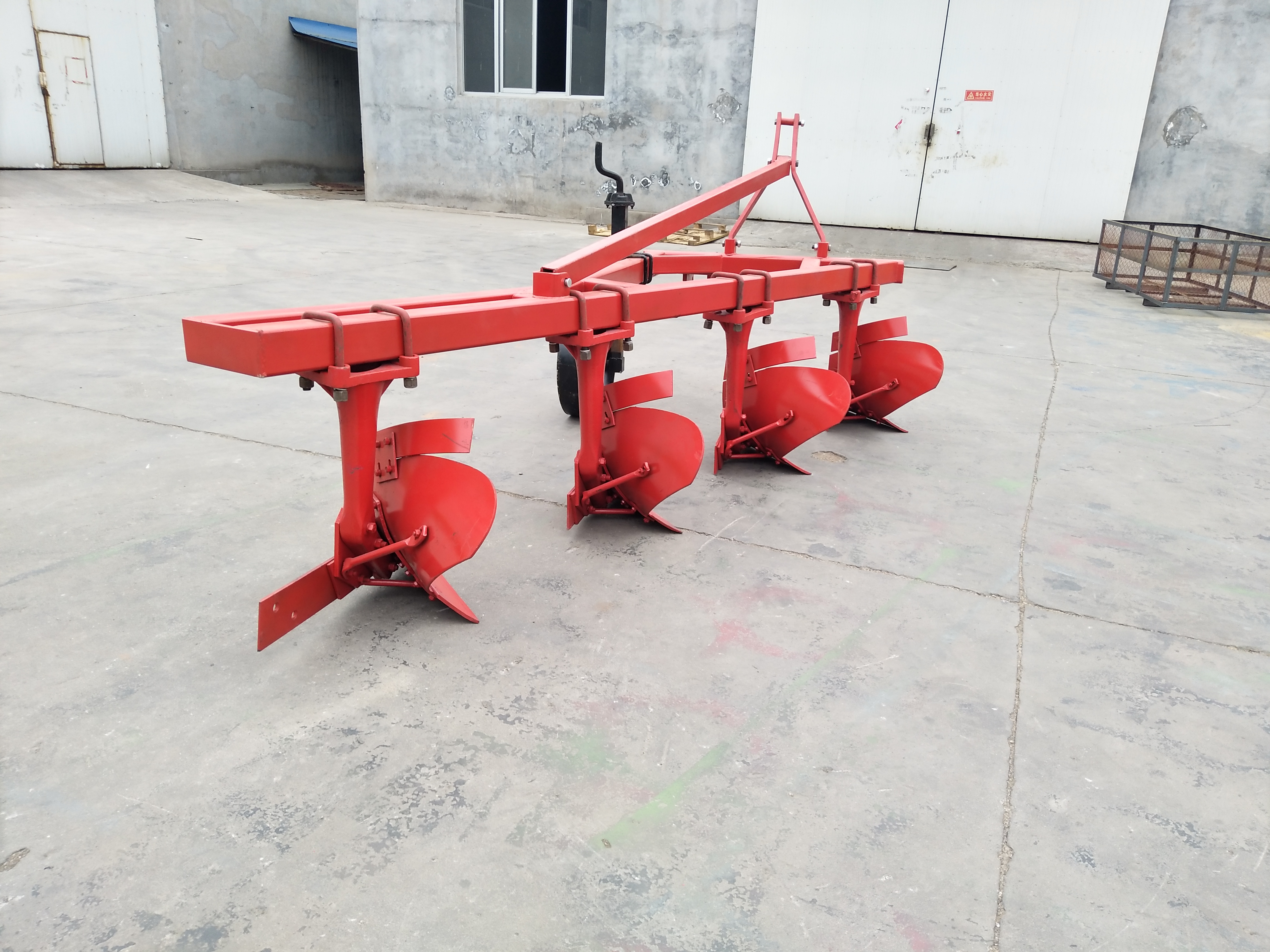

IMG_20180404_103933   IMG_20180404_103943
